battery holder and mounting parts for BMW 3 Series E90 LCI 325xi (2011)

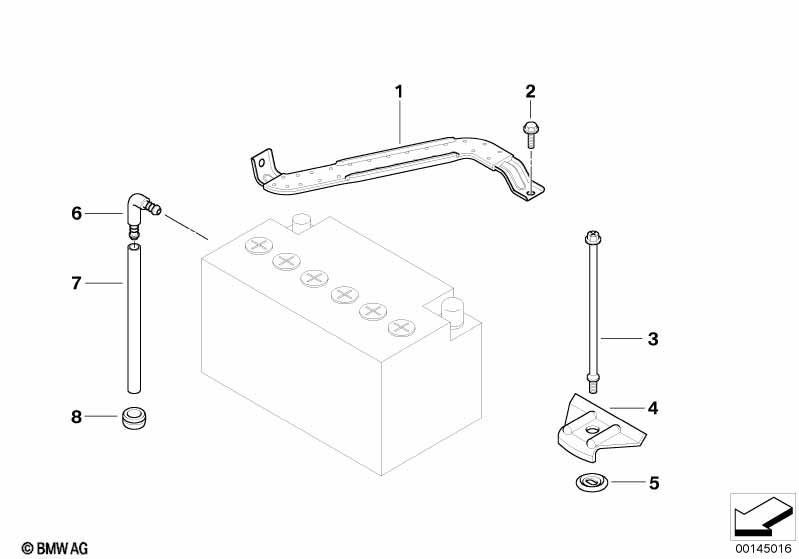

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rollover protection | 1 | 61217549425 | $8.65 | Shop at ECS Tuning | |||||
| 02 | Hexagon screw with flange | M6X12-8.8-ZNS3 | 2 | 07119904125 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex screw with collar | M6/ 26,5MM | 1 | 07147211160 | $1.36 | Shop at ECS Tuning | ||||
| 04 | Battery hold down | 1 | 61217631587 | Shop at ECS Tuning | ||||||
| 06 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Hose running meter | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 07 | Distribution piece | 1 | 61661378617 | $0.67 | Shop at ECS Tuning | |||||
| 08 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
