Various cable holders for BMW 3 Series E46 325i (2001)

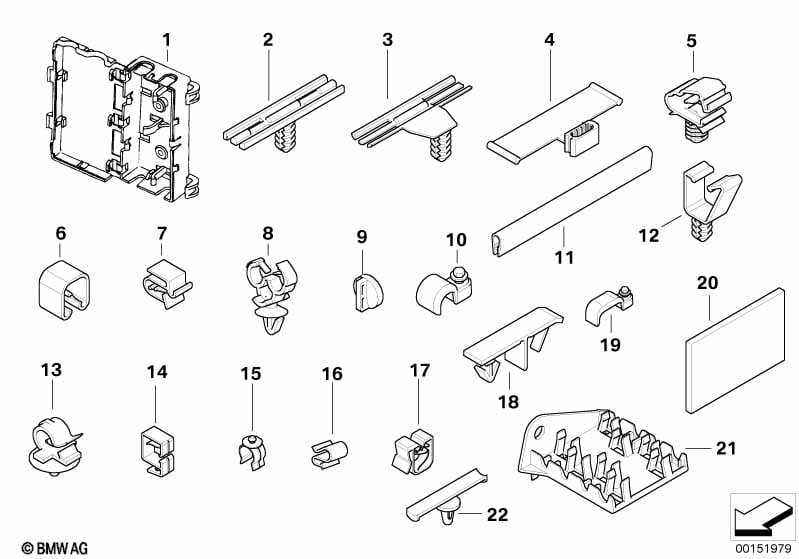

This Various cable holders technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug-in connection bracket | X | 61138372280 | $2.78 | Shop at ECS Tuning | |||||
| 02 | Cable holder | X | 61138362786 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Cable holder | X | 61138362787 | $0.43 | Shop at ECS Tuning | |||||
| 04 | Cable holder | X | 61138374478 | $0.42 | Shop at ECS Tuning | |||||
| 05 | Tubing support | X | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Holder | X | 61131387626 | $0.57 | Shop at ECS Tuning | |||||
| 07 | Cable holder | D=5MM | X | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Wire holder, two-place | X | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 09 | Push-button | X | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Clamp | X | 12521710686 | $0.63 | Shop at ECS Tuning | |||||
| 11 | Running meter, edge protection | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 13 | Clip retainer | X | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 16 | Fixing clamp | A=3,5 - 6,0MM | 1 | 07147547239 | $0.58 | Shop at ECS Tuning | ||||
| 16 | Fixing clamp | X | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| 17 | Tubing support | X | 61138350827 | $0.38 | Shop at ECS Tuning | |||||
| 18 | Cable clip | X | 61138355070 | $0.77 | Shop at ECS Tuning | |||||
| 19 | Cable clamp | X | 61138375708 | $0.55 | Shop at ECS Tuning | |||||
| 20 | Set felt strip self-adhesive | X | 08/2006 | 51452353024 | Shop at ECS Tuning | |||||
| 22 | Cable holder | X | 61136916943 | $0.43 | Shop at ECS Tuning |
