Repair cable main cable harness for BMW 6 Series E63 650i (2007)

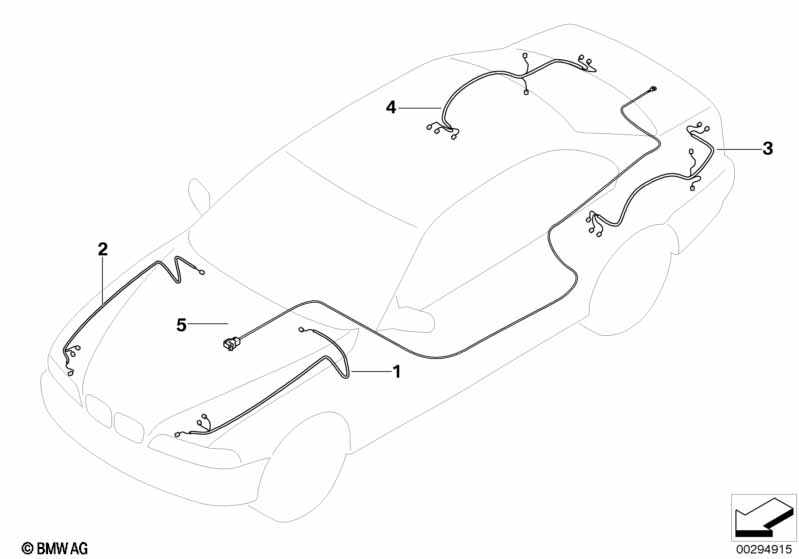

This Repair cable main cable harness technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left repair wiring set | 1 | 03/2007 | 09/2007 | 61119167401 | $672.90 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2007 | 09/2007 | 61116964410 | $58.27 | Shop at ECS Tuning | |||
| 02 | Front right repair wiring set | 1 | 03/2007 | 09/2007 | 61119167402 | $1428.60 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2007 | 09/2007 | 61116964410 | $58.27 | Shop at ECS Tuning | |||
| 03 | Repair wiring set, rear left | 1 | 03/2007 | 09/2007 | 61119169365 | $861.30 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2007 | 09/2007 | 61116964410 | $58.27 | Shop at ECS Tuning | |||
| 04 | Repair wiring set rear right | 1 | 03/2007 | 09/2007 | 61119169553 | $987.60 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Repair kit for plug with travel stops | 1 | 03/2007 | 09/2007 | 61116964409 | $58.27 | Shop at ECS Tuning | |||
| 05 | B cable positive,power distributor front | L= 4680MM | 1 | 61119243092 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
