Earth strap for BMW 3 Series E91 LCI 335d (2012)

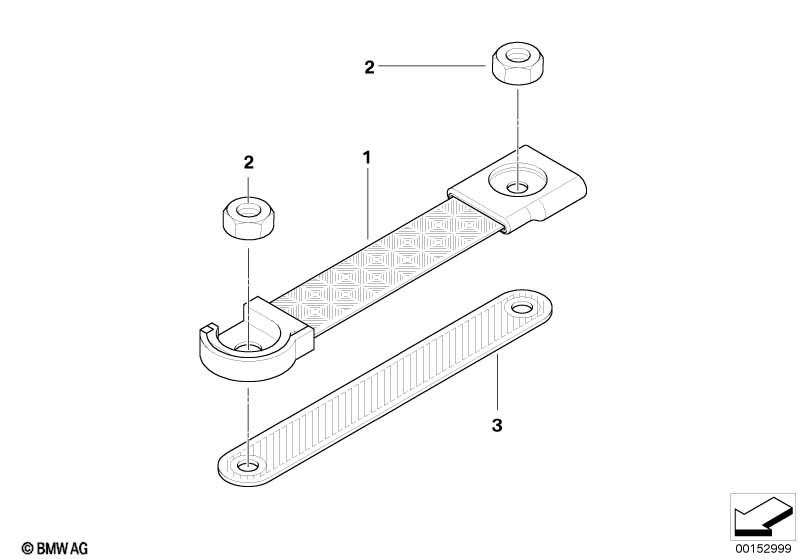

This Earth strap technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Earth strap, trunk lid, right | 1 | 61126978002 | $9.22 | Shop at ECS Tuning | |||||
| 01 | Earth strap, trunk lid, left | 1 | 61129247542 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M5X8 | 4 | 61139115568 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Earth strap, hinge/trunk lid | 1 | 61129114571 | $17.80 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 335d Earth strap?
- This technical diagram illustrates the Earth strap within the Vehicle electrical system group for the 3 Series E91 LCI 335d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Earth strap, trunk lid, right (Part #61126978002).
- Which models use the hardware listed in this Earth strap?
- The hardware and components featured in the Earth strap are specific to the 3 Series E91 LCI 335d produced during 2012. These technical specifications ensure that parts like the Earth strap, trunk lid, right (61126978002) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Earth strap assembly?
- Each item in the Earth strap corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 335d, you can identify the Earth strap, trunk lid, right by locating its position on the schematic, which then links to the official BMW part number 61126978002 for the Vehicle electrical system section.
