Single parts for windshield cleaning for BMW 3 Series E91 LCI 335d (2012)

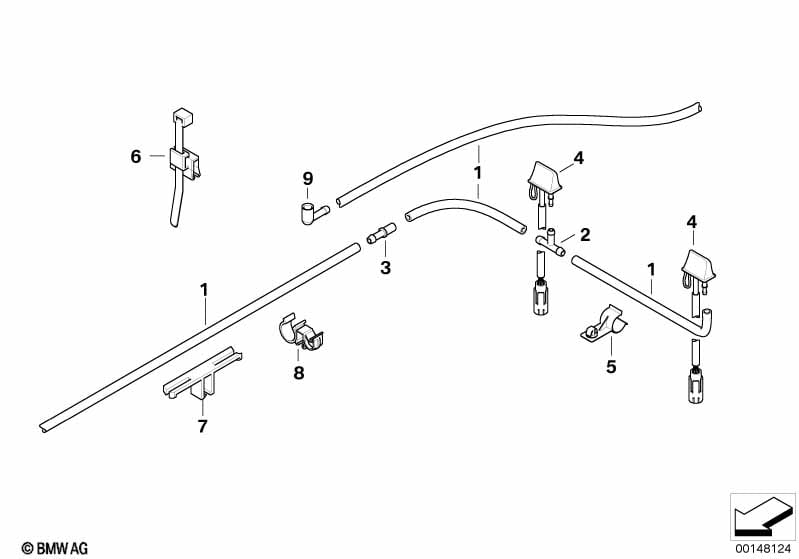

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose line | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 02 | T-Connector | 1 | 61668374372 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Bush, hose line | 1 | 61688248026 | $1.07 | Shop at ECS Tuning | |||||
| 04 | Heated spray nozzle | 2 | 61667131299 | $37.35 | Shop at ECS Tuning | |||||
| 04 | Spray nozzle | 2 | 61667138569 | $12.17 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket, hose line | 1 | 61667123500 | $1.92 | Shop at ECS Tuning | |||||
| 06 | Cable strap with bracket | L=200MM | 1 | 61139200225 | Shop at ECS Tuning | |||||
| 07 | Cable holder | 1 | 61136943977 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Clip, hose | 2 | 07147151388 | $1.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 335d Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 3 Series E91 LCI 335d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Hose line (Part #61668362762).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 3 Series E91 LCI 335d produced during 2012. These technical specifications ensure that parts like the Hose line (61668362762) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 335d, you can identify the Hose line by locating its position on the schematic, which then links to the official BMW part number 61668362762 for the Vehicle electrical system section.
