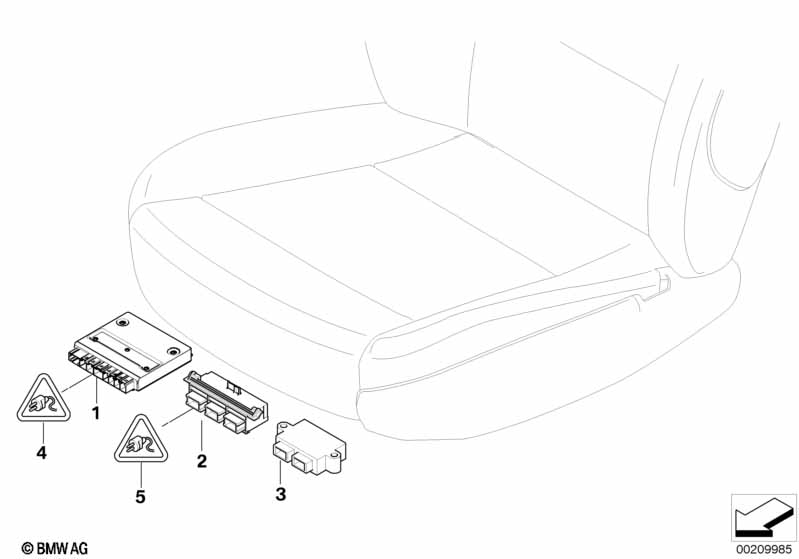

Control unit for front seat for BMW 5 Series E60 525i (2005)
This Control unit for front seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat heating driver/passenger and Active seat for driver and passenger and Climate-controlled seats, front and Comfort seat |
S494A=Yes S455A=Yes S453A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2006 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Seat heating driver/passenger and Active seat for driver and passenger and Climate-controlled seats, front and Comfort seat |
S494A=Yes S455A=No S453A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2006 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Seat heating driver/passenger and Lumbar support, driver and passenger and Seat adjuster, electric, with memory and Sports seat |
S494A=Yes S488A=No S459A=Yes =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2005 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Seat heating driver/passenger and Lumbar support, driver and passenger and Seat adjuster, electric, with memory and Sports seat |
S494A=No S488A=No S459A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2005 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Active seat for driver and passenger and Seat heating driver/passenger and Comfort seat |
S453A=Yes S455A=Yes S494A=Yes =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2006 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Active seat for driver and passenger and Seat heating driver/passenger and Comfort seat |
S453A=Yes S455A=Yes S494A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2006 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Lumbar support, driver and passenger and Seat adjuster, electric, with memory and Seat heating driver/passenger and Sports seat |
S488A=Yes S459A=Yes S494A=Yes =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2005 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Lumbar support, driver and passenger and Seat adjuster, electric, with memory and Seat heating driver/passenger and Sports seat |
S488A=Yes S459A=Yes S494A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 09/2005 | 61356927319 | $332.35 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat and Lumbar support, driver and passenger and Seat heating driver/passenger and basic seat (standard seat) |
S459A=Yes S481A=No S488A=No S494A=Yes =Yes |
|||||||||
| 01 | Seat module | 1 | 03/2005 | 61359196974 | Shop at ECS Tuning | |||||
| Note Repair Manual REP-61 35 080! | ||||||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat and Lumbar support, driver and passenger and Seat heating driver/passenger and basic seat (standard seat) |
S459A=No S481A=No S488A=No S494A=Yes =Yes |
|||||||||
| 01 | Seat module | 1 | 03/2005 | 61359196974 | Shop at ECS Tuning | |||||
| Note Repair Manual REP-61 35 080! During conversion on the passenger's side side, a new control unit bracket must also be used. See diagram 52_3012 for front seat, seat frame |
||||||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat and Lumbar support, driver and passenger and Seat heating driver/passenger and Sports seat |
S459A=Yes S481A=Yes S488A=No S494A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 61356927319 | $332.35 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat and Lumbar support, driver and passenger and Seat heating driver/passenger and basic seat (standard seat) |
S459A=Yes S481A=No S488A=No S494A=No =Yes |
|||||||||
| 01 | Seat module | 1 | 03/2005 | 61359196974 | Shop at ECS Tuning | |||||
| Note Repair Manual REP-61 35 080! | ||||||||||
| For vehicles with Active backrest width adjustment |
S4MFA=Yes |
|||||||||
| 02 | Control unit backrest width adjustment | 1 | 61356938911 | $209.49 | Shop at ECS Tuning | |||||
| 04 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 2,4- 4,0 MM? | X | 61138364844 | $0.50 | Shop at ECS Tuning | ||||
| 04 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| 04 | Socket housing, uncloded | 4 POL. | 1 | 61136901832 | $1.58 | Shop at ECS Tuning | ||||
| 04 | Socket housing | 5 POL. | 1 | 61136901842 | $4.12 | Shop at ECS Tuning | ||||
| 04 | Socket housing | 20 POL./ Z-CODE | 1 | 61136905178 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Socket housing | 8 POL. | 1 | 61136901678 | $2.27 | Shop at ECS Tuning | ||||
| 05 | Socket housing, uncloded | 10 POL. | 2 | 61136931912 | $4.12 | Shop at ECS Tuning | ||||
