Cable covering f trunk lid for BMW 5 Series E61 525d

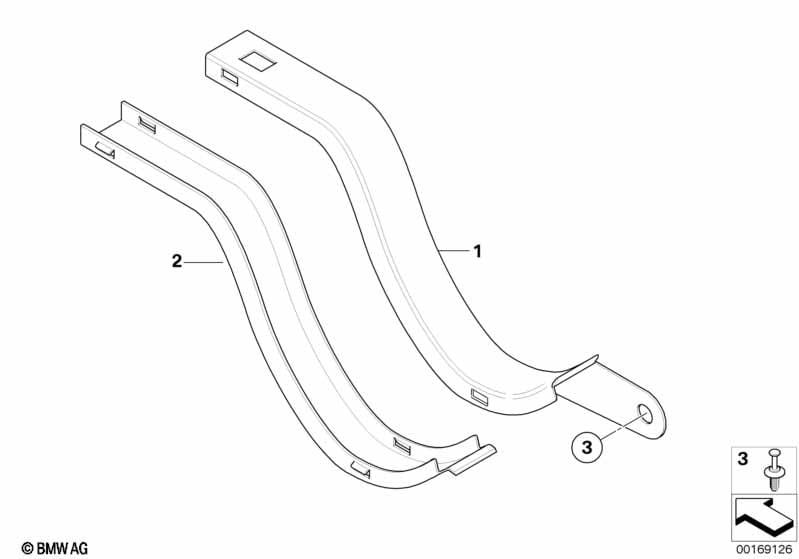

This Cable covering f trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wire duct upper part, trunk lid, left | 1 | 61136978333 | Shop at ECS Tuning | ||||||
| 01 | Wire duct upper part, trunk lid, right | 1 | 61136978334 | Shop at ECS Tuning | ||||||
| 01 | Wire duct upper part, rear screen, left | 1 | 61136978337 | $9.63 | Shop at ECS Tuning | |||||
| 01 | Wire duct upper part, rear screen, right | 1 | 61136978338 | $9.63 | Shop at ECS Tuning | |||||
| 02 | Wiring duct lower part, trunk lid | 2 | 61136978339 | $9.63 | Shop at ECS Tuning | |||||
| 02 | Wiring duct lower part, rear screen | 2 | 61136978340 | Shop at ECS Tuning | ||||||
| 03 | Expanding rivet | X | 61116945528 | $0.72 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525d Cable covering f trunk lid?
- This technical diagram illustrates the Cable covering f trunk lid within the Vehicle electrical system group for the 5 Series E61 525d. It provides a detailed exploded view of the components, identifying key parts such as the Wire duct upper part, trunk lid, left (Part #61136978333).
- Which models use the hardware listed in this Cable covering f trunk lid?
- The hardware and components featured in the Cable covering f trunk lid are specific to the 5 Series E61 525d. These technical specifications ensure that parts like the Wire duct upper part, trunk lid, left (61136978333) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable covering f trunk lid assembly?
- Each item in the Cable covering f trunk lid corresponds to the numbered list below the illustration. For the 5 Series E61 525d, you can identify the Wire duct upper part, trunk lid, left by locating its position on the schematic, which then links to the official BMW part number 61136978333 for the Vehicle electrical system section.
