Single parts for head lamp cleaning for BMW 1 Series E87 LCI 118d (2009)

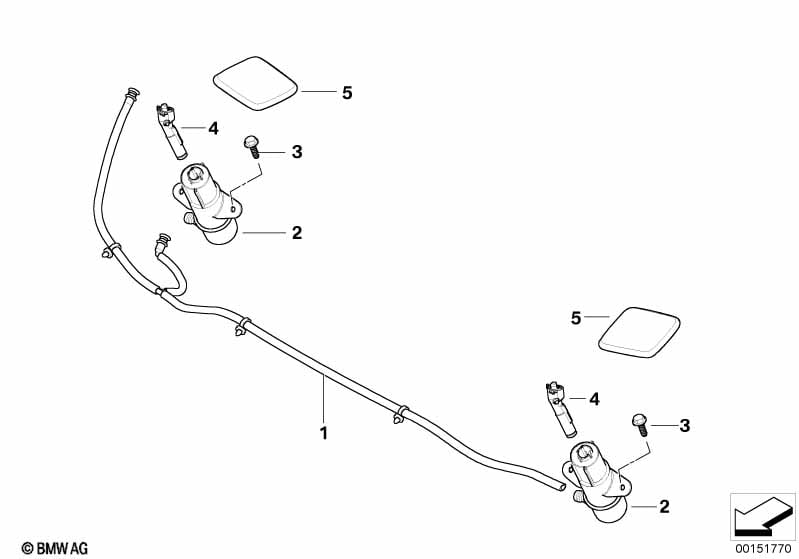

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Hose line, headlight cleaning system | 1 | 09/2005 | 61677837557 | $32.70 | Shop at ECS Tuning | ||||
| 02 | Housing, high-pressure nozzle | 2 | 09/2005 | 61673414960 | $33.70 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 4 | 09/2005 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 04 | Nozzle head, left | 1 | 09/2005 | 61677837309 | $12.80 | Shop at ECS Tuning | ||||
| 04 | Nozzle head, right | 1 | 09/2005 | 61677837310 | $12.80 | Shop at ECS Tuning | ||||
| 05 | Cover cap, primed, left | 1 | 09/2005 | 61677837431 | $12.28 | Shop at ECS Tuning | ||||
| 05 | Cover cap, primed, right | 1 | 09/2005 | 61677837432 | $12.28 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118d Single parts for head lamp cleaning?
- This technical diagram illustrates the Single parts for head lamp cleaning within the Vehicle electrical system group for the 1 Series E87 LCI 118d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Hose line, headlight cleaning system (Part #61677837557).
- Which models use the hardware listed in this Single parts for head lamp cleaning?
- The hardware and components featured in the Single parts for head lamp cleaning are specific to the 1 Series E87 LCI 118d produced during 2009. These technical specifications ensure that parts like the Hose line, headlight cleaning system (61677837557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for head lamp cleaning assembly?
- Each item in the Single parts for head lamp cleaning corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118d, you can identify the Hose line, headlight cleaning system by locating its position on the schematic, which then links to the official BMW part number 61677837557 for the Vehicle electrical system section.
