Wiring set active steering for BMW 3 Series E90 330d (2008)

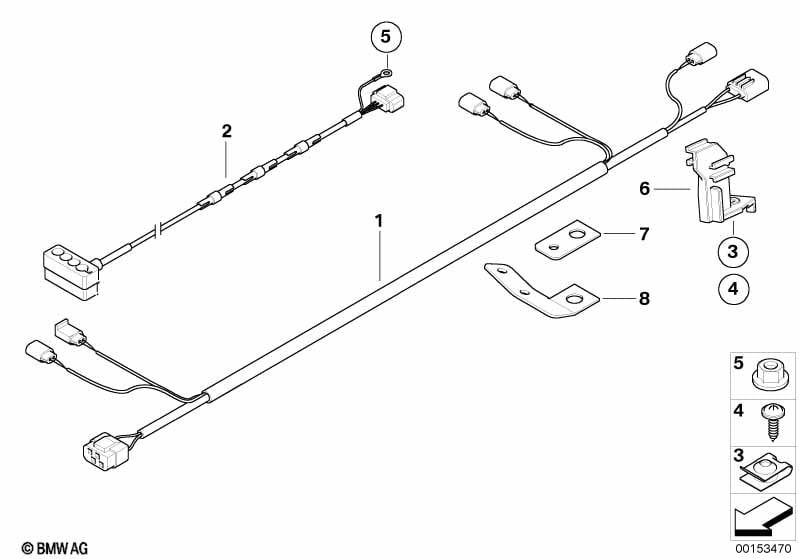

This Wiring set active steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active steering |
S217A=Yes |
||||||||
| 01 | Wiring set active steering | 1 | 09/2007 | 09/2008 | 61119150788 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable, active steering system, Power | X13720-X13719 | 1 | 09/2005 | 61129141172 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,8-9-ZNS3 | 1 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X16-U1-C- | 1 | 07119904182 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Flange nut | M8 | 1 | 07146952901 | Shop at ECS Tuning | |||||
| 06 | Plug-in connection bracket | 1 | 61136919422 | $3.10 | Shop at ECS Tuning | |||||
| 07 | Holder for AFS power cable | 1 | 61136977417 | Shop at ECS Tuning | ||||||
| 08 | Holder for AFS power cable | 1 | 61136977418 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330d Wiring set active steering?
- This technical diagram illustrates the Wiring set active steering within the Vehicle electrical system group for the 3 Series E90 330d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Wiring set active steering (Part #61119150788).
- Which models use the hardware listed in this Wiring set active steering?
- The hardware and components featured in the Wiring set active steering are specific to the 3 Series E90 330d produced during 2008. These technical specifications ensure that parts like the Wiring set active steering (61119150788) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring set active steering assembly?
- Each item in the Wiring set active steering corresponds to the numbered list below the illustration. For the 3 Series E90 330d, you can identify the Wiring set active steering by locating its position on the schematic, which then links to the official BMW part number 61119150788 for the Vehicle electrical system section.
