Rain and light sensor for BMW 5 Series E60 LCI 525i (2009)

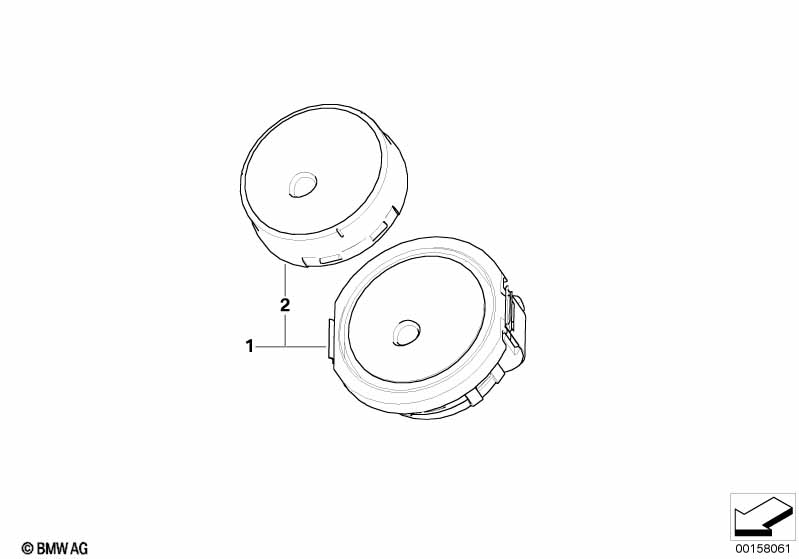

This Rain and light sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Head-up display |
S610A=No |
||||||||
| For vehicles with Lane departure warning and National version japan |
S5ADA=No L807A=No |
|||||||||
| 01 | Rain/light/solar sensor | 1 | 10/2008 | 61359254026 | Shop at ECS Tuning | |||||
| Use of the substitute optics package is approved only for vehicles with rain- light sensor-solar sensor. The substitute optics are not approved for use on vehicles with head-up display or with installed rain/light/solar and condensation sensor. |
||||||||||
| 02 | Substitute visuals RLS | 1 | 61359248398 | Shop at ECS Tuning | ||||||
