Ground cable for BMW 3 Series E93 LCI 325i (2013)

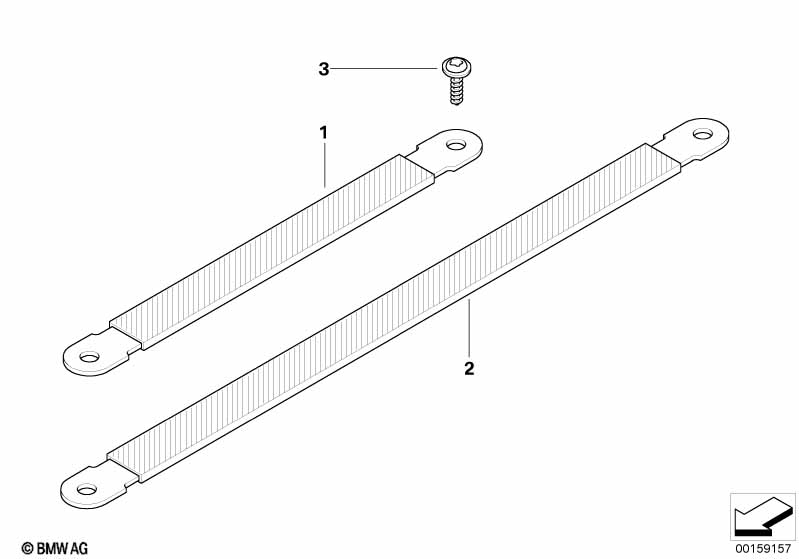

This Ground cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Earth strap | 40MM | 2 | 61126971301 | $9.28 | Shop at ECS Tuning | ||||
| 02 | Earth strap | 90MM | 2 | 61126971302 | $9.28 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ISA M5X12 | 4 | 07149158177 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 LCI 325i Ground cable?
- This technical diagram illustrates the Ground cable within the Vehicle electrical system group for the 3 Series E93 LCI 325i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Earth strap (Part #61126971301).
- Which models use the hardware listed in this Ground cable?
- The hardware and components featured in the Ground cable are specific to the 3 Series E93 LCI 325i produced during 2013. These technical specifications ensure that parts like the Earth strap (61126971301) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ground cable assembly?
- Each item in the Ground cable corresponds to the numbered list below the illustration. For the 3 Series E93 LCI 325i, you can identify the Earth strap by locating its position on the schematic, which then links to the official BMW part number 61126971301 for the Vehicle electrical system section.
