ECU for switch center in center console for BMW 5 Series E60 LCI 523i (2009)

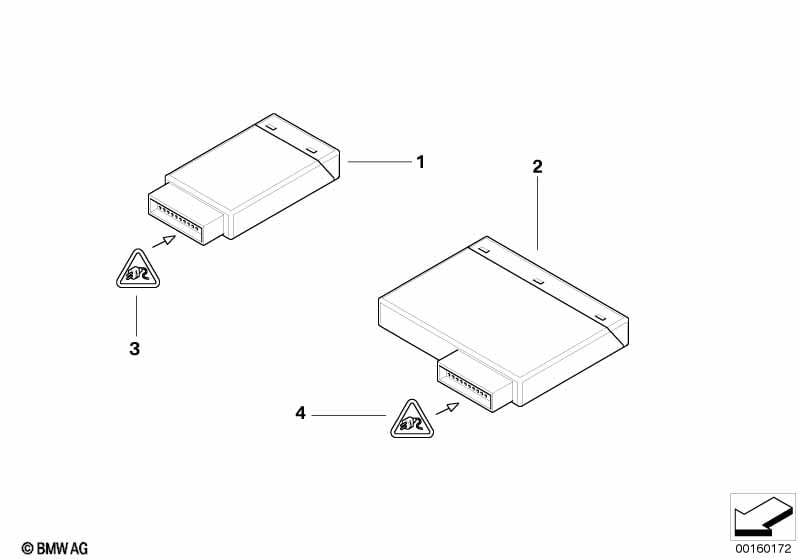

This ECU for switch center in center console technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ECU for switch center in center console | 1 | 61319183233 | $175.96 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear or Comfort seat with memory or Seat adjuster, electric, with memory |
S415A=Yes S456A=Yes S459A=Yes |
|||||||||
| 02 | Electronic driver circuit, cent. console | 1 | 61319138969 | $160.24 | Shop at ECS Tuning | |||||
| 03 | Covering cap | 32 POL./Z-CODE | 1 | 61138373648 | $8.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 32 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 32 | 61130056961 | Shop at ECS Tuning | |||||
| -- | Socket housing | 32 POL. | 1 | 61138373650 | $1.28 | Shop at ECS Tuning | ||||
| 04 | Covering cap | 1 | 61136905167 | $2.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket housing | 20 POL./ Z-CODE | 1 | 61136905178 | $1.05 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 1 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
