Steering wheel electronic control for BMW 5 Series E60 LCI 520d (2009)

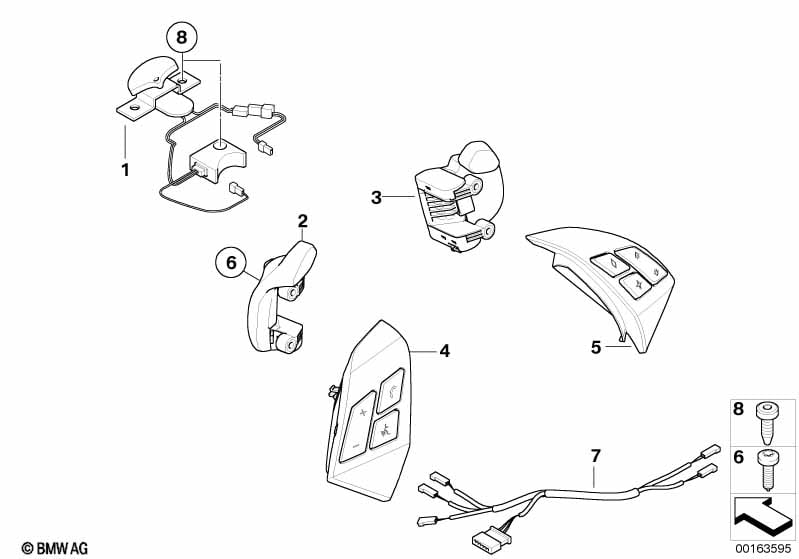

This Steering wheel electronic control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lane departure warning |
S5ADA=Yes |
|||||||||
| 01 | Motor, electric lane drift warning | 1 | 61319130303 | $309.41 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission |
S2TBA=Yes |
|||||||||
| 02 | Rocker-type shift lever, left | 1 | 61319115638 | $293.39 | Shop at ECS Tuning | |||||
| 03 | Rocker-type shift lever, right | 1 | 61319116317 | $293.39 | Shop at ECS Tuning | |||||
| For vehicles with Sports leather steering wheel and M leather steering wheel |
S255A=No S710A=No |
|||||||||

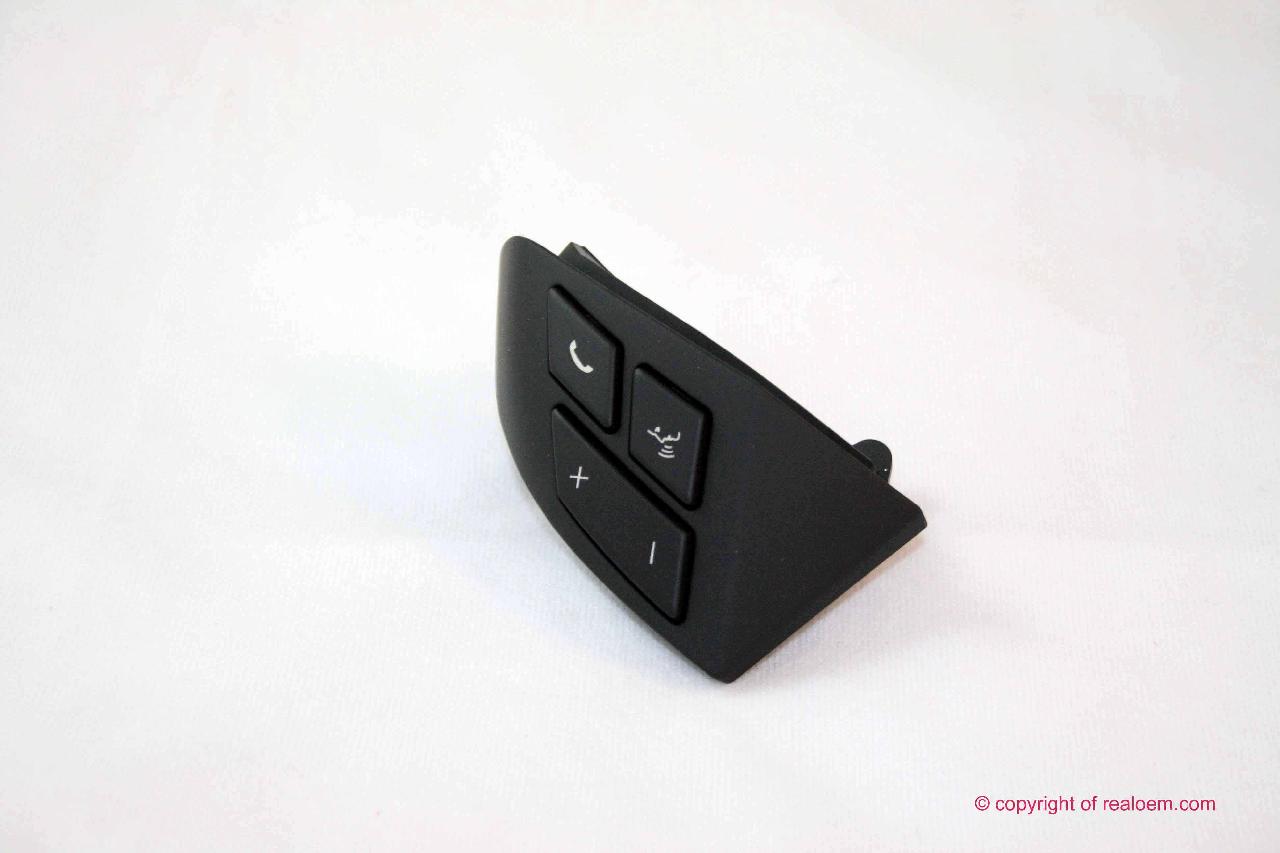

| 04 | MFL switch, left | 1 | 61316983283 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sports leather steering wheel or M leather steering wheel |
S255A=Yes S710A=Yes |
|||||||||
| 04 | MFL switch, left | 1 | 61316968573 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sports leather steering wheel and Lane departure warning and M leather steering wheel |
S255A=No S5ADA=No S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 61316983284 | $88.20 | Shop at ECS Tuning | |||||
| For vehicles with Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S5ADA=Yes S255A=No S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 61316983286 | $88.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S5ADA=Yes S255A=Yes S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 61316983282 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S5ADA=Yes S255A=No S710A=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 61316983282 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S5ADA=No S255A=Yes S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 61316968574 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S5ADA=No S255A=No S710A=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 61316968574 | $88.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung and Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S6VAA=Yes S5ADA=Yes S255A=No S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150244 | $88.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CIC-Zusteuerung and Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S6VAA=Yes S5ADA=No S255A=Yes S710A=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150246 | $88.20 | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung and Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S6VAA=Yes S5ADA=No S255A=Yes S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150246 | $88.20 | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung and Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S6VAA=Yes S5ADA=No S255A=No S710A=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150246 | $88.20 | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung and Lane departure warning and Sports leather steering wheel and M leather steering wheel |
S6VAA=Yes S5ADA=No S255A=No S710A=No |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150242 | $88.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CIC-Zusteuerung and Sports leather steering wheel and M leather steering wheel and Lane departure warning |
S6VAA=Yes S255A=Yes S710A=No S5ADA=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150248 | $88.20 | Shop at ECS Tuning | ||||
| For vehicles with CIC-Zusteuerung and Sports leather steering wheel and M leather steering wheel and Lane departure warning |
S6VAA=Yes S255A=No S710A=Yes S5ADA=Yes |
|||||||||
| 05 | MFL switch, right | 1 | 03/2008 | 61319150248 | $88.20 | Shop at ECS Tuning | ||||
| For vehicles with Sport automatic transmission and Steering wheel heater |
S2TBA=Yes S248A=Yes |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316959355 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission and Steering wheel heater |
S2TBA=Yes S248A=No |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316959355 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission and Steering wheel heater |
S2TBA=No S248A=Yes |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316959355 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission |
S248A=Yes S2TBA=No |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316959356 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission |
S248A=No S2TBA=Yes |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316976396 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission |
S248A=Yes S2TBA=Yes |
|||||||||
| 07 | Wiring set,steering wheel electronic ctr | 1 | 61316976397 | $25.67 | Shop at ECS Tuning | |||||
| For vehicles with Lane departure warning |
S5ADA=Yes |
|||||||||
| 08 | Countersunk screw | M5X12-TC-8.8 | 3 | 07119906308 | $1.05 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
