Switch window lifter for BMW 5 Series E60 LCI 525d (2008)

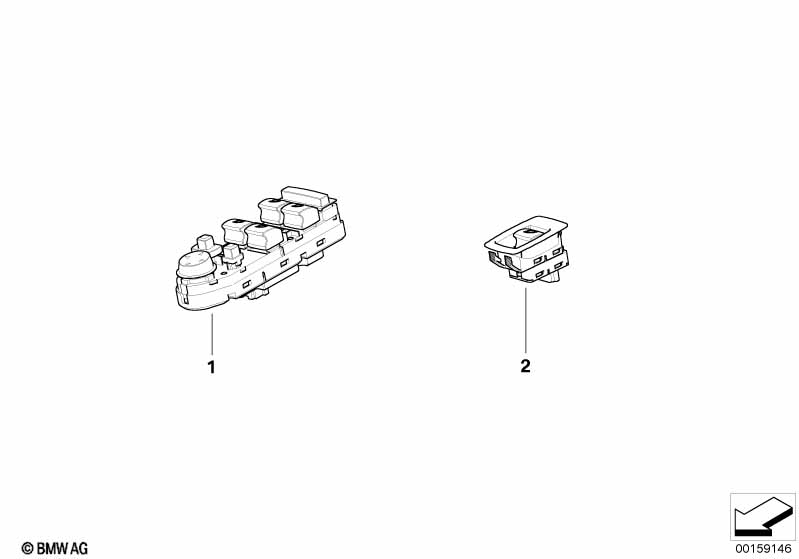

This Switch window lifter technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sun-blind, rear and Interior/outside mirror with auto dip |
S415A=Yes S430A=Yes |
|||||||||
| 01 | Window lifter switch, driver's side | 1 | 61319122113 | $134.66 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear or Interior/outside mirror with auto dip |
S415A=No S430A=No |
|||||||||
| 01 | Window lifter switch, driver's side | 1 | 61319122110 | $134.66 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Interior/outside mirror with auto dip |
S415A=No S430A=Yes |
|||||||||
| 01 | Window lifter switch, driver's side | 1 | 61319122111 | $134.66 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Interior/outside mirror with auto dip |
S415A=Yes S430A=No |
|||||||||
| 01 | Window lifter switch, driver's side | 1 | 61319122112 | $134.66 | Shop at ECS Tuning | |||||
| 02 | Switch window lifter | SANDBEIGE | 1 | 61313448654 | $33.68 | Shop at ECS Tuning | ||||
| 02 | Switch window lifter | CREMEBEIGE | 1 | 61319113771 | $33.68 | Shop at ECS Tuning | ||||
| 02 | Switch window lifter | GRAU 60 | 1 | 61319113772 | $33.68 | Shop at ECS Tuning | ||||
| 02 | Switch window lifter | SCHWARZ | 1 | 61319113773 | $33.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Switch window lifter | BEIGE 3 | 1 | 61319113931 | $33.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
