Control unit lights for BMW 5 Series E60 LCI 520d (2008)

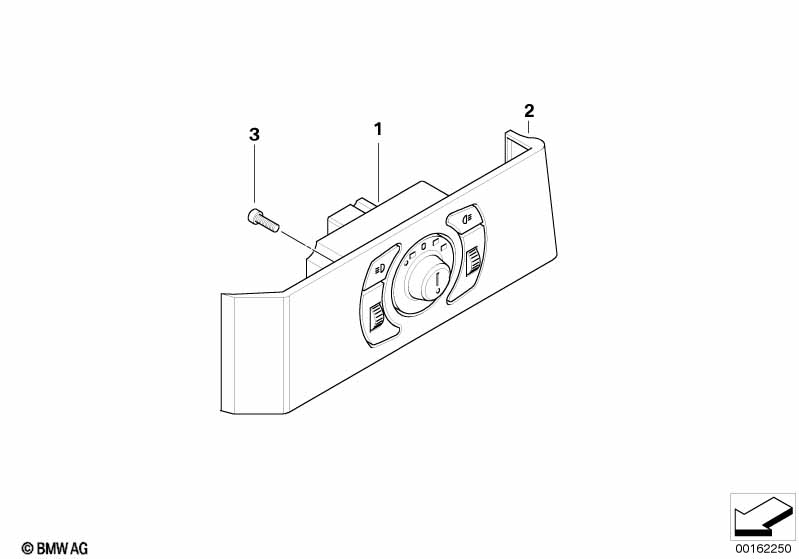

This Control unit lights technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=No S611A=Yes |
|||||||||
| 01 | Control unit lights | 1 | 61319135578 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=No S610A=No S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61319134725 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=Yes S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61319134727 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=No S610A=Yes S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61319134727 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=No S611A=No |
|||||||||
| 01 | Control unit lights | 1 | 61319134726 | Shop at ECS Tuning | ||||||
| For vehicles with Xenon Light and Head-up display and BMW Night Vision |
S522A=Yes S610A=Yes S611A=Yes |
|||||||||
| 01 | Control unit lights | 1 | 61319135575 | Shop at ECS Tuning | ||||||
| 02 | Cover, light operating unit | 1 | 61316979870 | $46.97 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | 1 | 07147143188 | $0.11 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
