Starter/Stop switch for BMW 3 Series E90 335i (2008)

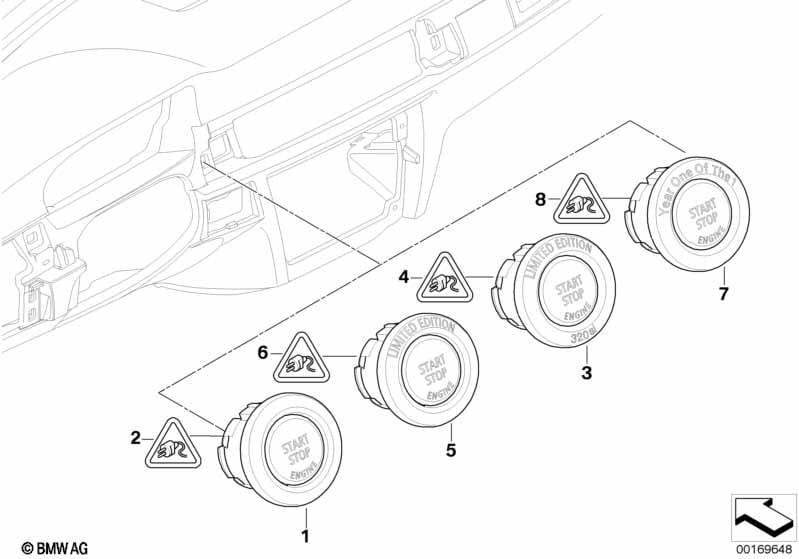

This Starter/Stop switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter/Stop switch | PERLGANZ CHROM | 1 | 09/2008 | 61316949913 | $80.19 | Shop at ECS Tuning | |||
| Plug not available separately. | ||||||||||
| 02 | Flat cable CAS | 1 | 61126960259 | $19.67 | Shop at ECS Tuning | |||||
| For vehicles with Individual series |
S938A=Yes |
|||||||||
| 05 | Starter/Stop switch | LIMITED EDITION | 1 | 07/2007 | 61317973477 | $77.80 | NoS | Shop at ECS Tuning | ||
| Plug not available separately. | ||||||||||
| 06 | Flat cable CAS | 1 | 61126960259 | $19.67 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 335i Starter/Stop switch?
- This technical diagram illustrates the Starter/Stop switch within the Vehicle electrical system group for the 3 Series E90 335i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Starter/Stop switch (Part #61316949913).
- Which models use the hardware listed in this Starter/Stop switch?
- The hardware and components featured in the Starter/Stop switch are specific to the 3 Series E90 335i produced during 2008. These technical specifications ensure that parts like the Starter/Stop switch (61316949913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter/Stop switch assembly?
- Each item in the Starter/Stop switch corresponds to the numbered list below the illustration. For the 3 Series E90 335i, you can identify the Starter/Stop switch by locating its position on the schematic, which then links to the official BMW part number 61316949913 for the Vehicle electrical system section.
