Dc/dc-torque converter for BMW 1 Series E81 123d (2011)

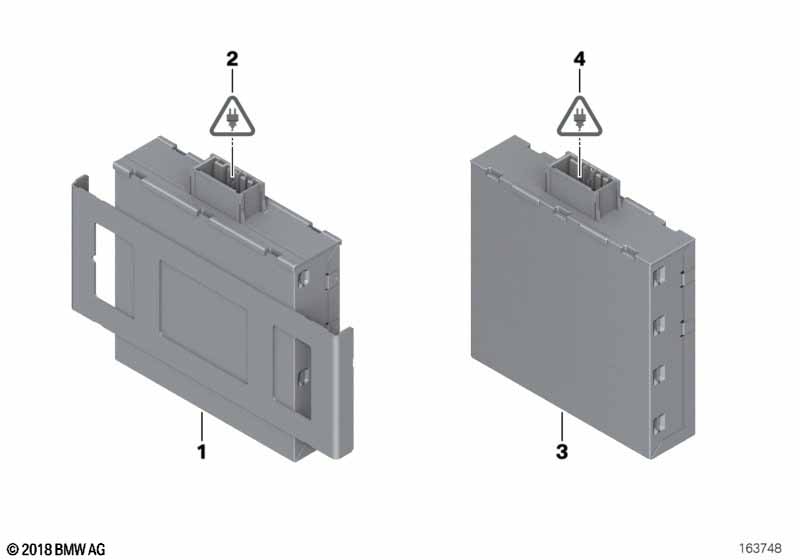

This Dc/dc-torque converter technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with automatic start-stop function. |
|||||||||
| For vehicles with TV function or On-board monitor with TV or Navigation system Business or Navigation system Professional or Preparation, mobile phone, Business or DAB tuner or CD changer for 6 CDs or HiFi speaker system or Harman/Kardon Surround Sound system or Provisions for BMW 6 CD changer or DVD changer or Teleservices or Convenience phone, expanded Smartphone |
S601A=Yes S602A=Yes S606A=Yes S609A=Yes S633A=Yes S654A=Yes S672A=Yes S676A=Yes S688A=Yes S694A=Yes S696A=Yes S6AEA=Yes S6NSA=Yes |
|||||||||
| 03 | Dc/dc-torque converter | 1 | 61429253208 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter | 1 | 61429231740 | Shop at ECS Tuning | ||||||
| 04 | Socket housing, uncloded | 10 POL. | 1 | 61136931912 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364836 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
