Official vehicle package for BMW 3 Series E90 LCI 320i (2012)

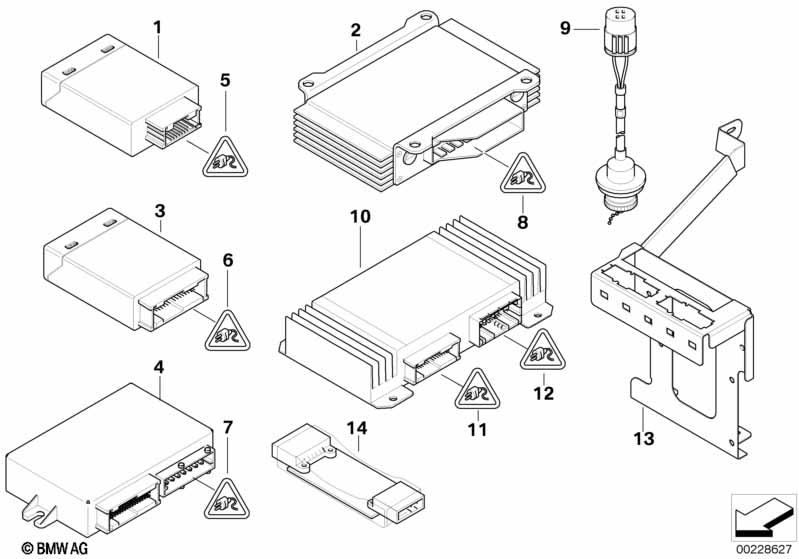

This Official vehicle package technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Control unit ''Infrastructure'' | 1 | 04/2010 | 61357286252 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Module, official, blinker, yellow | 1 | 09/2008 | 61357237920 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Unmasked official vehicle or Patrol vehicle, camouflaged |
S185A=Yes S186A=Yes |
|||||||||
| 04 | Module f officials utility | 1 | 09/2008 | 61357233914 | Shop at ECS Tuning | |||||
| 06 | Socket housing | 32 POL. | 1 | 61138373650 | $1.28 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0,75 MM²/AU | X | 61131393726 | $0.68 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
| -- | Covering cap | 32 POL./Z-CODE | 1 | 61138373648 | $8.55 | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 09 | Charging socket with cable | 1 | 61218361565 | Shop at ECS Tuning | ||||||
| 10 | Control unit, audio | 1 | 09/2008 | 61357209659 | Shop at ECS Tuning | |||||
| 10 | Control module, audio, front flasher | 1 | 03/2009 | 61357245961 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Alarm switch with fire service circuitry |
S145A=Yes |
|||||||||
| 10 | Control module, audio fire department | 1 | 09/2008 | 61357244205 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply or Unmasked official vehicle or Patrol vehicle, camouflaged |
S146A=Yes S185A=Yes S186A=Yes |
|||||||||
| 13 | Mount, relay, aux. power supply | 1 | 09/2008 | 61357220385 | Shop at ECS Tuning | |||||
| 14 | Interface, low beam on with blue flasher | 1 | 03/2009 | 61357246328 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
