battery holder and mounting parts for BMW 7 Series F02 LCI 760Li (2015)

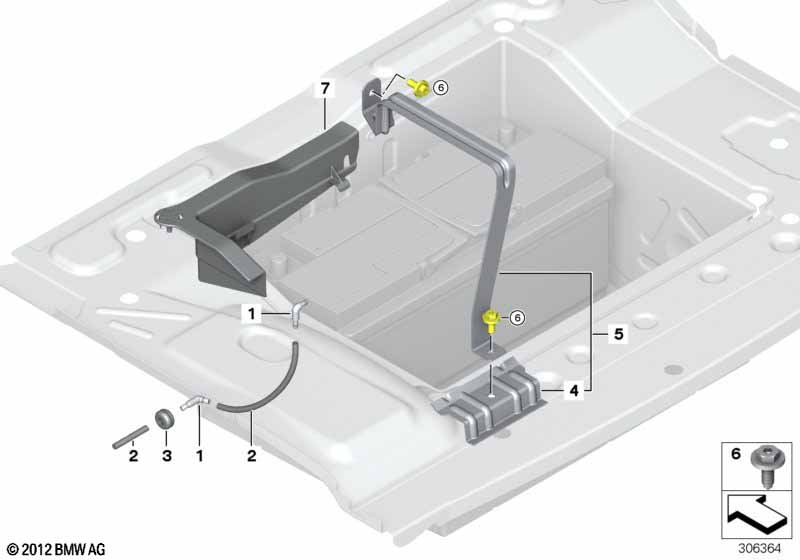

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 02 | Hose running meter | 1 | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 03 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Battery hold down | 1 | 61217622074 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X22 | 6 | 07147152728 | $0.75 | Shop at ECS Tuning | ||||
| 07 | Impact protection | 1 | 61139177353 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 760Li battery holder and mounting parts?
- This technical diagram illustrates the battery holder and mounting parts within the Vehicle electrical system group for the 7 Series F02 LCI 760Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Connection elbow (Part #61211377835).
- Which models use the hardware listed in this battery holder and mounting parts?
- The hardware and components featured in the battery holder and mounting parts are specific to the 7 Series F02 LCI 760Li produced during 2015. These technical specifications ensure that parts like the Connection elbow (61211377835) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the battery holder and mounting parts assembly?
- Each item in the battery holder and mounting parts corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 760Li, you can identify the Connection elbow by locating its position on the schematic, which then links to the official BMW part number 61211377835 for the Vehicle electrical system section.
