Miscellaneous plugs and connectors for BMW 3 Series E90 325xi (2008)

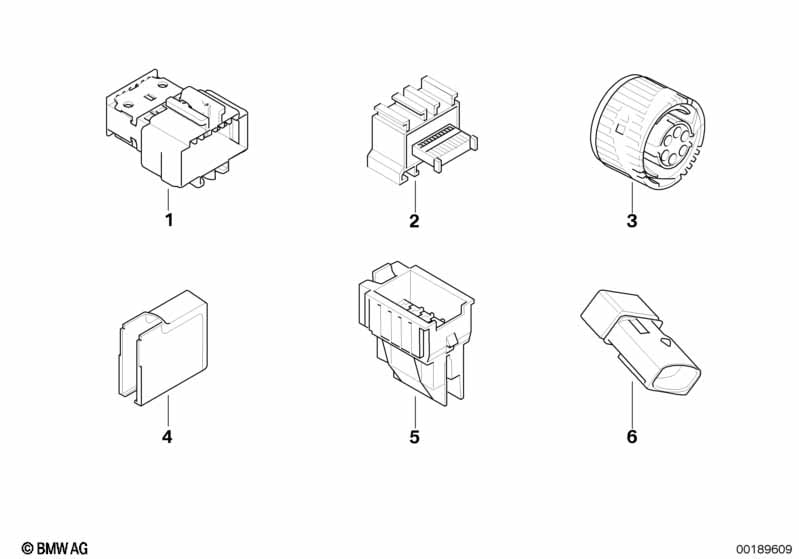

This Miscellaneous plugs and connectors technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pin housing, uncoded | 8 POL. | X | 61136905999 | $2.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin-contact ELO-Power 2,8 x 0,63 | 0,35-0,5MM² | X | 61138373293 | $0.77 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325xi Miscellaneous plugs and connectors?
- This technical diagram illustrates the Miscellaneous plugs and connectors within the Vehicle electrical system group for the 3 Series E90 325xi produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Pin housing, uncoded (Part #61136905999).
- Which models use the hardware listed in this Miscellaneous plugs and connectors?
- The hardware and components featured in the Miscellaneous plugs and connectors are specific to the 3 Series E90 325xi produced during 2008. These technical specifications ensure that parts like the Pin housing, uncoded (61136905999) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Miscellaneous plugs and connectors assembly?
- Each item in the Miscellaneous plugs and connectors corresponds to the numbered list below the illustration. For the 3 Series E90 325xi, you can identify the Pin housing, uncoded by locating its position on the schematic, which then links to the official BMW part number 61136905999 for the Vehicle electrical system section.
