Single parts, antikidnapping for BMW 5 Series E60 530i (2005)

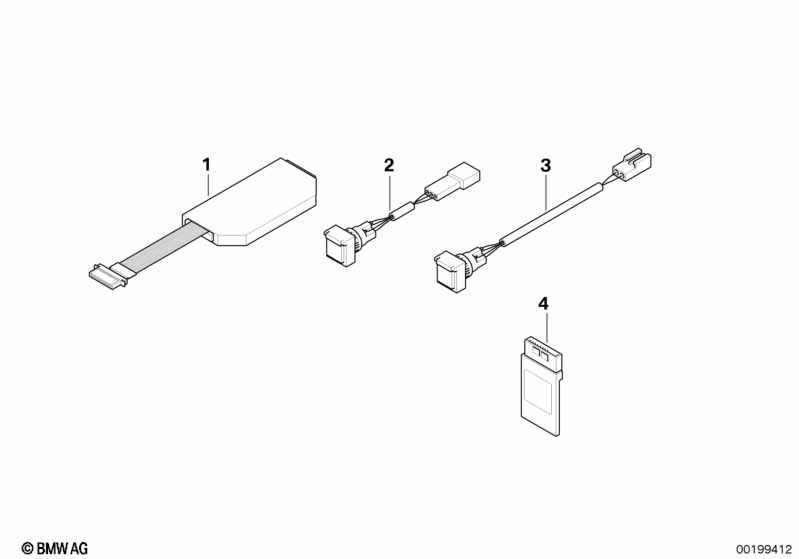

This Single parts, antikidnapping technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle |
S106A=Yes |
||||||||
| 01 | Interface | 1 | 61357175665 | +core | Shop at ECS Tuning | |||||
| 02 | Switch | 1 | 61317184605 | +core | Shop at ECS Tuning | |||||
| 03 | Reset switch | 1 | 61317184606 | +core | Shop at ECS Tuning | |||||
| 04 | Relay for flasher | 1 | 61127175663 | ENDED | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
