A/C control panel for BMW 7 Series F03 760LiS (2012)

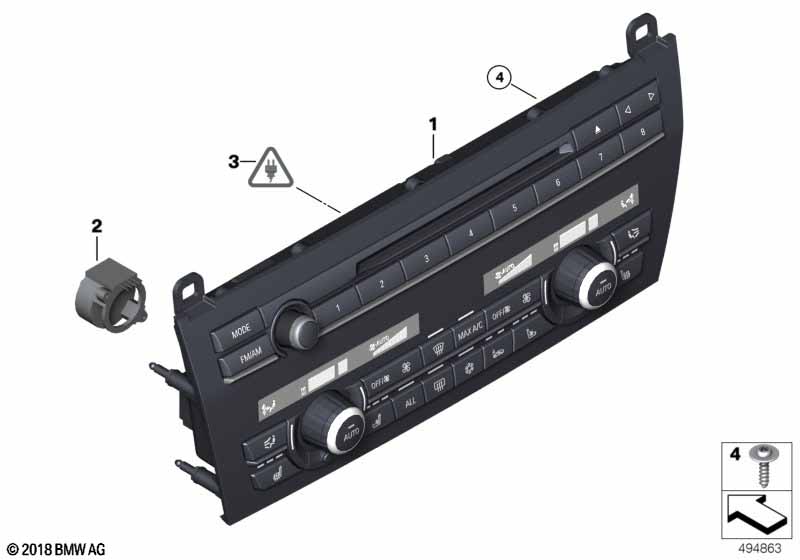

This A/C control panel technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 760LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observe Repair Manual REP-64 11 879! If Position 1 is not present the repair kit for the radio and a/c controls must be used. For vehicles up to 07/2012: Use the button cover repair kit if buttons display surface damage. For vehicles with Climate-controlled seats, front |
S453A=No |
||||||||
| 02 | Interior temperature sensor fan | 1 | 07/2012 | 64116910342 | $52.73 | Shop at ECS Tuning | ||||
| 04 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07/2012 | 07149185673 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F03 760LiS A/C control panel?
- This technical diagram illustrates the A/C control panel within the Vehicle electrical system group for the 7 Series F03 760LiS produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Interior temperature sensor fan (Part #64116910342).
- Which models use the hardware listed in this A/C control panel?
- The hardware and components featured in the A/C control panel are specific to the 7 Series F03 760LiS produced during 2012. These technical specifications ensure that parts like the Interior temperature sensor fan (64116910342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A/C control panel assembly?
- Each item in the A/C control panel corresponds to the numbered list below the illustration. For the 7 Series F03 760LiS, you can identify the Interior temperature sensor fan by locating its position on the schematic, which then links to the official BMW part number 64116910342 for the Vehicle electrical system section.
