Seat adjustment switch, front for BMW 5 Series F10 528i (2011)

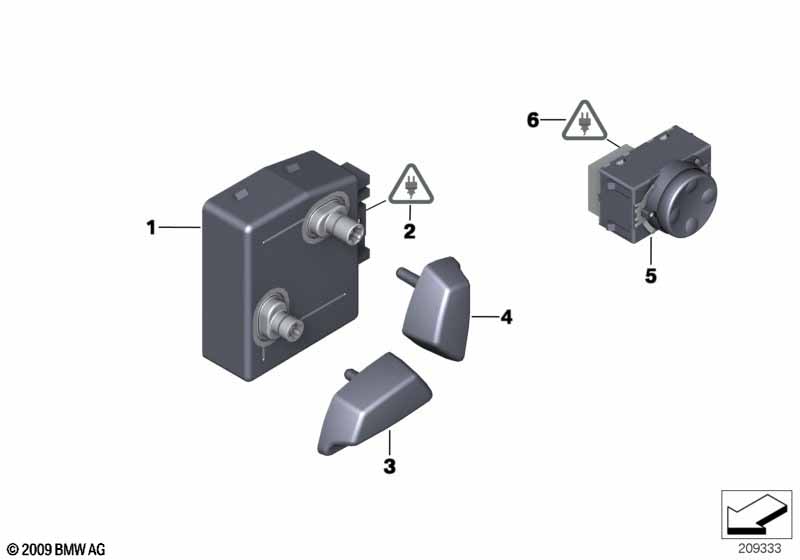

This Seat adjustment switch, front technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=No S459A=Yes |
|||||||||
| 01 | Seat adjustment switch, left | 1 | 61316958525 | $46.47 | Shop at ECS Tuning | |||||
| 01 | Seat adjustment switch, right | 1 | 61316958526 | $46.47 | Shop at ECS Tuning | |||||
| 03 | Control, vertical seat adjustment, left | 1 | 61316958527 | $5.28 | Shop at ECS Tuning | |||||
| 03 | Control, vertical seat adjustment, right | 1 | 61316958528 | $5.28 | Shop at ECS Tuning | |||||
| 04 | Control, backrest adjustment, left | 1 | 61316958529 | $5.28 | Shop at ECS Tuning | |||||
| 04 | Control, backrest adjustment, right | 1 | 61316958530 | $5.28 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and Lumbar support, driver and passenger |
S456A=No S459A=No S488A=Yes |
|||||||||
| 05 | Left lumbar support switch | 1 | 61318352291 | $60.61 | Shop at ECS Tuning | |||||
| 05 | Right lumbar support switch | 1 | 61318360877 | $60.61 | Shop at ECS Tuning | |||||
