battery holder and mounting parts for BMW 5 Series F10 528i (2011)

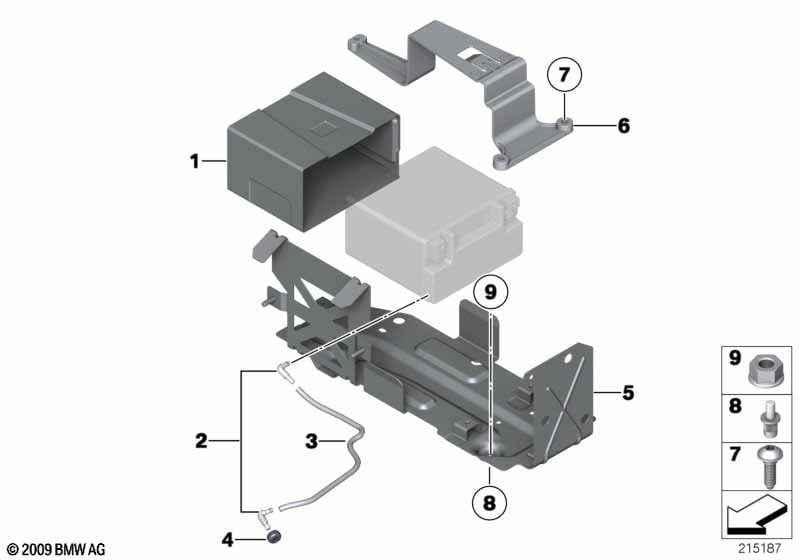

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Integral active steering |
S2VHA=Yes |
||||||||
| 01 | Heat insulation battery | 1 | 61217601908 | Shop at ECS Tuning | ||||||
| 02 | Connection elbow | 2 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 03 | Hose running meter | 1 | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 04 | Grommet | 12MM | 1 | 61217591102 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 61217592919 | Shop at ECS Tuning | ||||||
| 06 | Holder | 1 | 61217606565 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M6X14 | 1 | 07142756541 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Rivet pin | M6X13,5 | 4 | 07147209624 | $0.91 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
