Wiring sets for BMW 7 Series E32 735i (1992)

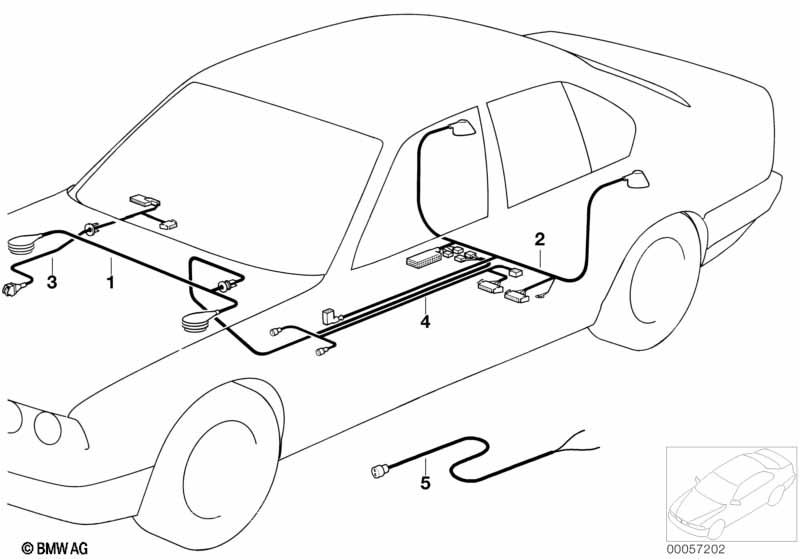

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wiring sensor AUC | 1 | 09/1991 | 61128356156 | $98.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring EDC III | 1 | 09/1991 | 61118356168 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO AUC | ||||||||||
| 04 | Wiring EDC III | 1 | 09/1991 | 61118356168 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring sensor AUC | 1 | 09/1991 | 61121390207 | $76.45 | ENDED | Shop at ECS Tuning | |||
| 05 | Repair cable PDC | 1 | 61128362097 | $45.57 | Shop at ECS Tuning | |||||
| 05 | Repair cable EDC | 4 | 61131378984 | $120.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Repair cable ABS | 1 | 61139061686 | $43.36 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
