battery holder and mounting parts for BMW 5 Series F11 535i (2013)

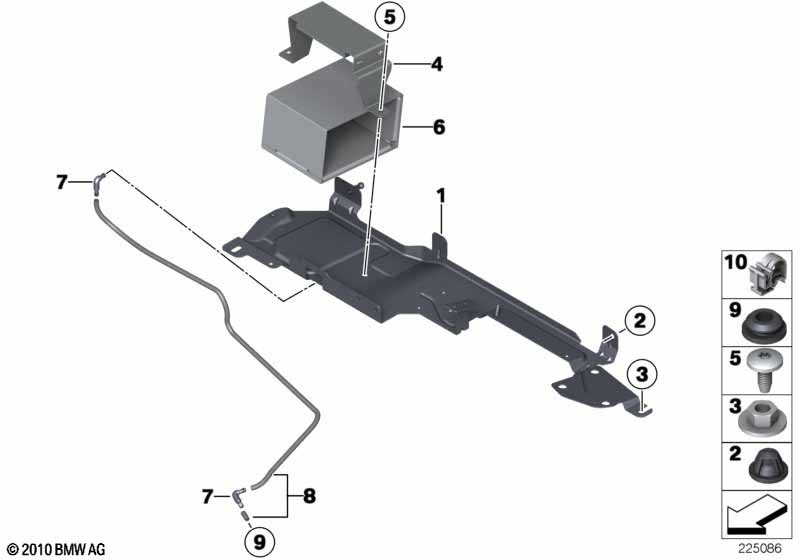

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Integral active steering |
S2VHA=Yes |
||||||||
| 01 | Battery tray | 1 | 61217595384 | Shop at ECS Tuning | ||||||
| 02 | Snap-lock coupling | KD10 | 3 | 61217599099 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M6 | 2 | 07146986935 | $2.62 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 61217604355 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | M6X14 | 2 | 07142756541 | $0.29 | Shop at ECS Tuning | ||||
| 06 | Heat insulation battery | 1 | 61217601908 | Shop at ECS Tuning | ||||||
| 07 | Connection elbow | 2 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 08 | Hose running meter | 1 | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 09 | Grommet | 12MM | 1 | 61217591102 | Shop at ECS Tuning | |||||
| 10 | Tubing support | 1 | 61667067184 | $0.95 | Shop at ECS Tuning | |||||
