Battery crash pad for BMW 6 Series F06 Gran Coupé 640d (2015)

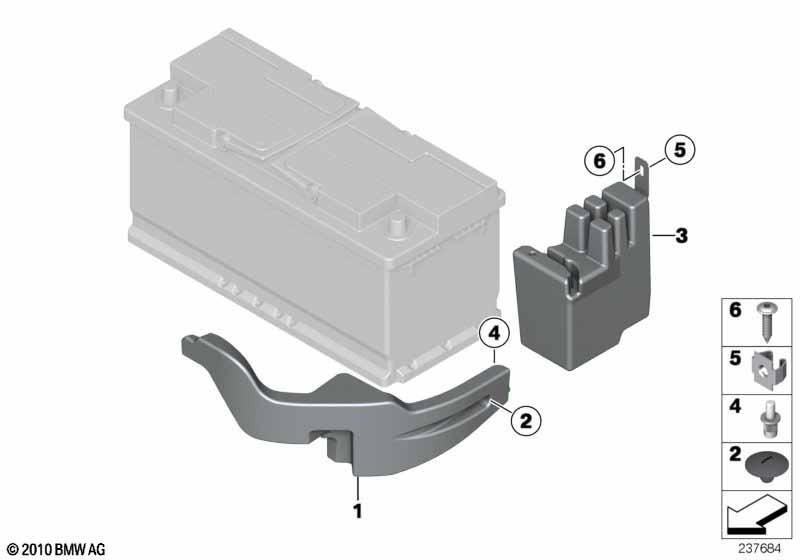

This Battery crash pad technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery crash pad | 1 | 61217607453 | Shop at ECS Tuning | ||||||
| 02 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 03 | Battery crash pad | 1 | 61217607454 | Shop at ECS Tuning | ||||||
| 04 | Rivet pin | M6X13,5 | 2 | 07147209624 | $0.91 | Shop at ECS Tuning | ||||
| 05 | Prestol-cage | ST4,8 | 1 | 07129904437 | $0.28 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | ST4,8X19 | 1 | 07119904714 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F06 Gran Coupé 640d Battery crash pad?
- This technical diagram illustrates the Battery crash pad within the Vehicle electrical system group for the 6 Series F06 Gran Coupé 640d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Battery crash pad (Part #61217607453).
- Which models use the hardware listed in this Battery crash pad?
- The hardware and components featured in the Battery crash pad are specific to the 6 Series F06 Gran Coupé 640d produced during 2015. These technical specifications ensure that parts like the Battery crash pad (61217607453) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery crash pad assembly?
- Each item in the Battery crash pad corresponds to the numbered list below the illustration. For the 6 Series F06 Gran Coupé 640d, you can identify the Battery crash pad by locating its position on the schematic, which then links to the official BMW part number 61217607453 for the Vehicle electrical system section.
