Various switches for BMW 5 Series E34 530i (1996)

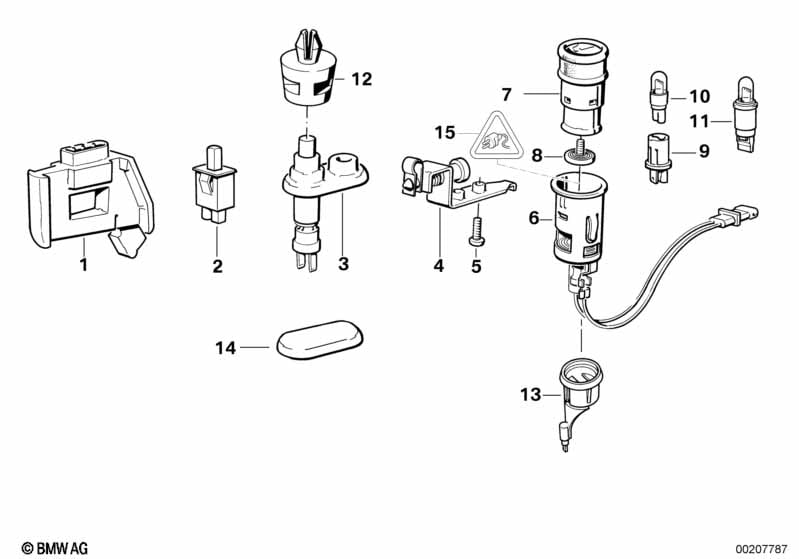

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch striker plate | 4 | 61311384858 | $21.63 | Shop at ECS Tuning | |||||
| 02 | Switch | 1 | 61311388277 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO TRUNK LIGHT |
||||||||||
| 02 | Switch | 1 | 61318351140 | $14.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO ENGINE COMPARTMENT LIGHT |
||||||||||
| 03 | Switch | 1 | 61311379572 | $14.12 | Shop at ECS Tuning | |||||
| 04 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Cigarette lighter socket | 1 | 61341378716 | $26.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO LIGHTER REAR | ||||||||||
| 06 | Cigarette lighter socket | 1 | 01/1991 | 09/1996 | 61348350958 | $11.10 | Shop at ECS Tuning | |||
| 07 | Lighter element | 1 | 09/1996 | 61341375967 | $19.58 | ENDED | Shop at ECS Tuning | |||
| 08 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 09 | Bulb socket | 1 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 10 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 11 | Bulb socket with bulb | 1,2W | 1 | 63311382547 | $2.40 | Shop at ECS Tuning | ||||
| 12 | Door switch spacer | 1 | 61311370695 | $1.82 | Shop at ECS Tuning | |||||
| 13 | Clamping bush f lighter | 1 | 61341362968 | $11.05 | ENDED | Shop at ECS Tuning | ||||
| 15 | Plug housing | 2 POL. | 1 | 61131351144 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable socket female | 0,5-1,0 MM² | 1 | 61131362868 | $0.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
