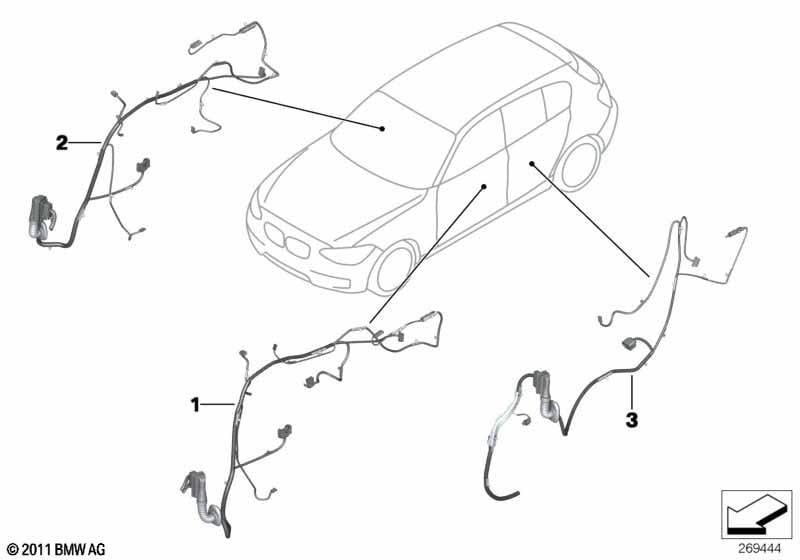

Door cable harnesses for BMW 1 Series F20 LCI 125i (2019)
This Door cable harnesses technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335291 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335292 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S430A=Yes S459A=Yes S563A=No |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335286 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S430A=Yes S459A=No S563A=No |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335286 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S430A=No S459A=Yes S563A=No |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335286 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S322A=No S430A=Yes S459A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335287 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S322A=No S430A=Yes S459A=No |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335287 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S322A=No S430A=No S459A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335287 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=Yes S459A=Yes S563A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335288 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=Yes S459A=No S563A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335288 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=No S459A=Yes S563A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 07/2012 | 61129335288 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=No S459A=No S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335301 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=No S430A=No S459A=No S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335300 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=No S430A=No S459A=No S563A=No |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335298 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=Yes S459A=Yes S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335297 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=Yes S459A=No S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335297 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=No S459A=Yes S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335297 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=No S430A=Yes S459A=Yes S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335296 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=No S430A=Yes S459A=No S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335296 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=No S430A=No S459A=Yes S563A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335296 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Light package |
S322A=Yes S430A=No S459A=No S563A=No |
|||||||||
| 02 | Wiring co-drivers side | 1 | 07/2012 | 61129335301 | Shop at ECS Tuning | |||||
| 03 | Wiring set rear door | 2 | 03/2012 | 61129335304 | Shop at ECS Tuning | |||||
