Single parts for rear window cleaning for BMW 3 Series F31 LCI 320d (2019)

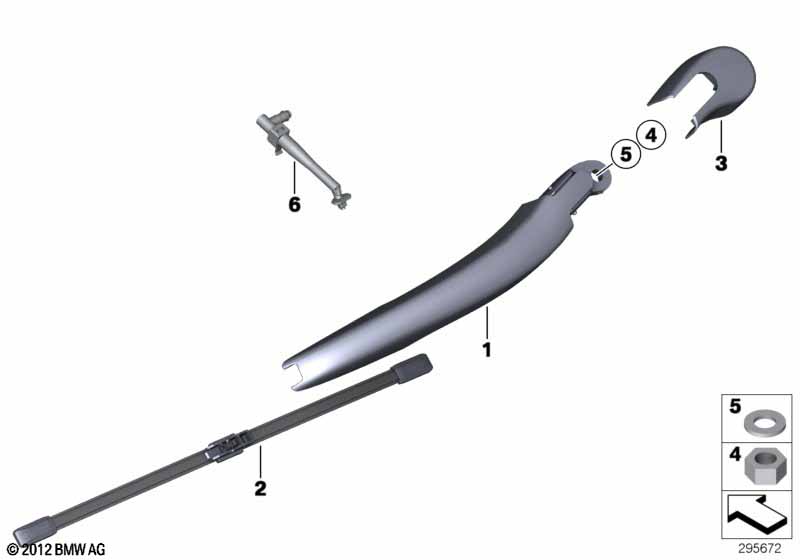

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper arm | 1 | 61627312792 | Shop at ECS Tuning | ||||||
| 02 | Wiper blade | 1 | 61627356763 | Shop at ECS Tuning | ||||||
| 03 | Wiper arm cover | 1 | 61627066175 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Rear washer nozzle | 1 | 61687287291 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F31 LCI 320d Single parts for rear window cleaning?
- This technical diagram illustrates the Single parts for rear window cleaning within the Vehicle electrical system group for the 3 Series F31 LCI 320d produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Rear window wiper arm (Part #61627312792).
- Which models use the hardware listed in this Single parts for rear window cleaning?
- The hardware and components featured in the Single parts for rear window cleaning are specific to the 3 Series F31 LCI 320d produced during 2019. These technical specifications ensure that parts like the Rear window wiper arm (61627312792) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for rear window cleaning assembly?
- Each item in the Single parts for rear window cleaning corresponds to the numbered list below the illustration. For the 3 Series F31 LCI 320d, you can identify the Rear window wiper arm by locating its position on the schematic, which then links to the official BMW part number 61627312792 for the Vehicle electrical system section.
