Switch center, headliner, low for BMW 7 Series F02 LCI 730Li (2015)

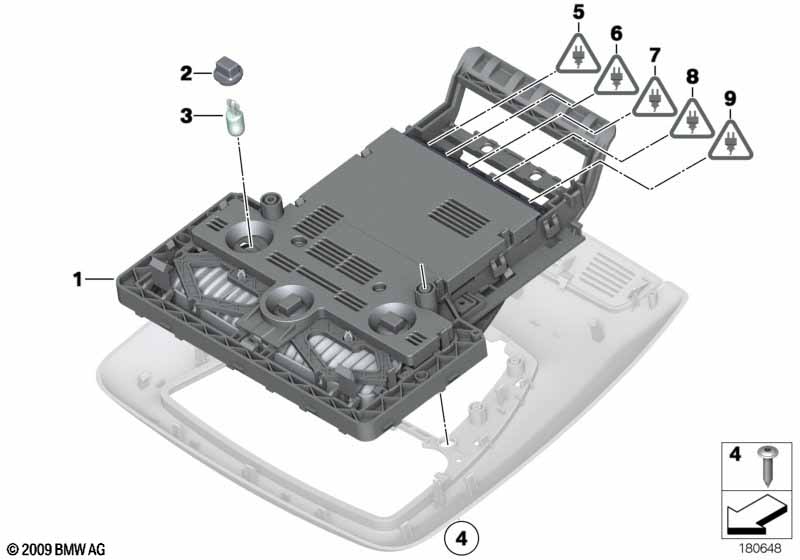

This Switch center, headliner, low technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observe Repair Manual REP-61 31 544! Part exchange during the warranty and goodwill period: The damaged part must be sent back within the warranty and goodwill period as a complete part. If this is not complied with, the BMW Group reserves the right to refuse a warranty or goodwill application. For the roof switch center repair kit, it is essential to use a new roof switch center cover panel. For vehicles with Alarm system and Electric panoramic roof and Glass roof, electrical and Ambient interior lighting |
S302A=No S402A=No S403A=No S4URA=No |
||||||||
| For vehicles with National version Korea and National version Australia and Teleservices and Connection Bluetooth + USB devices incl. |
L802A=No L810A=No S6AEA=No S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | FZD LOW POL | 1 | 07/2012 | 61319232054 | Shop at ECS Tuning | ||||
| Only together with trim cover for headliner switch module |
||||||||||
| For vehicles with National version Korea and National version Australia and Teleservices and Connection Bluetooth + USB devices incl. |
L802A=No L810A=No S6AEA=Yes S6NLA=Yes |
|||||||||
| 01 | Rep. kit for switch module, headliner | LOW POL SOS | 1 | 07/2012 | 61319232055 | Shop at ECS Tuning | ||||
| Only together with trim cover for headliner switch module |
||||||||||
| For vehicles with National version Korea and National version Australia and Teleservices and Connection Bluetooth + USB devices incl. |
L802A=No L810A=No S6AEA=Yes S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | LOW POL SOS | 1 | 07/2012 | 61319232055 | Shop at ECS Tuning | ||||
| Only together with trim cover for headliner switch module |
||||||||||
| For vehicles with National version Korea and National version Australia and Teleservices and Connection Bluetooth + USB devices incl. |
L802A=No L810A=No S6AEA=No S6NLA=Yes |
|||||||||
| 01 | Rep. kit for switch module, headliner | LOW POL SOS | 1 | 07/2012 | 61319232055 | Shop at ECS Tuning | ||||
| Only together with trim cover for headliner switch module |
||||||||||
| 02 | Bulb socket | 3 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| 03 | Bulb | 12V 6W XENON | 3 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw with collar | 2 | 62116919518 | $0.42 | Shop at ECS Tuning | |||||
