Switch center, headliner, high for BMW 7 Series F02 LCI 730Li (2015)

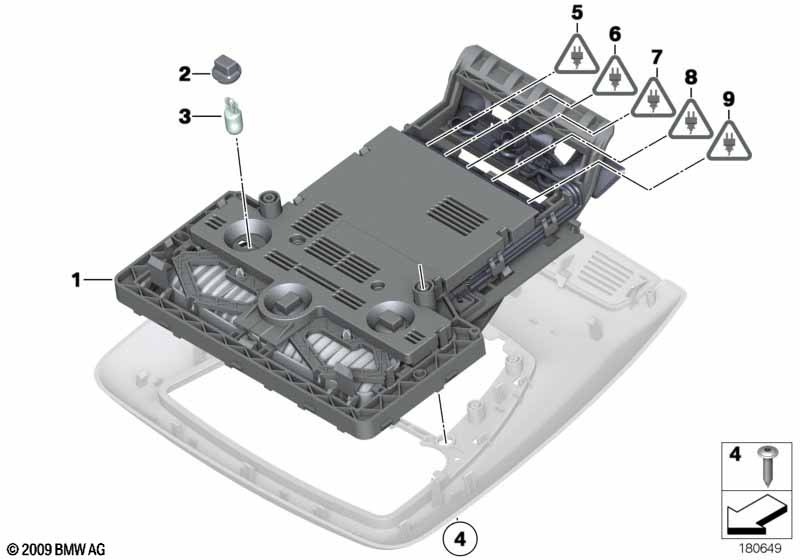

This Switch center, headliner, high technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observe Repair Manual REP-61 31 544! Part exchange during the warranty and goodwill period: The damaged part must be sent back within the warranty and goodwill period as a complete part. If this is not complied with, the BMW Group reserves the right to refuse a warranty or goodwill application. For the roof switch center repair kit, it is essential to use a new roof switch center cover panel. For vehicles with Alarm system |
S302A=Yes |
||||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=Yes S403A=Yes S4URA=No S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276231 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=Yes S403A=No S4URA=No S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276231 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=No S403A=Yes S4URA=No S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276231 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=Yes S403A=Yes S4URA=No S6NLA=Yes |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276232 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=Yes S403A=No S4URA=No S6NLA=Yes |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276232 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=No S403A=Yes S4URA=No S6NLA=Yes |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276232 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Glass roof, electrical and Ambient interior lighting and Connection Bluetooth + USB devices incl. |
S402A=No S403A=No S4URA=No S6NLA=No |
|||||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276229 | Shop at ECS Tuning | ||||||
| 01 | Rep. kit for switch module, headliner | 1 | 61319276230 | Shop at ECS Tuning | ||||||
| 02 | Bulb socket | 3 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| 03 | Bulb | 12V 6W XENON | 3 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw with collar | 2 | 62116919518 | $0.42 | Shop at ECS Tuning | |||||
| 05 | Socket housing | 4 POL. MPQ | 1 | 61136931890 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| 06 | Socket housing | 4 POL. MPQ | 1 | 61136931890 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 2,5-4,0 MM | 1 | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 1 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 1 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | 1 | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Socket housing | 14 POL. | 1 | 61136925562 | $0.72 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Covering cap | 14 POL. | 1 | 61136931962 | $2.20 | Shop at ECS Tuning | ||||
| 08 | Socket housing | 20 POL. | 1 | 12521744631 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Covering cap | 20 POL. | 1 | 61136931878 | $4.05 | Shop at ECS Tuning | ||||
| 09 | Socket housing | 16-POL. | 1 | 61136931956 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
