Steering wheel electronic control for BMW 5 Series F10 523i (2011)

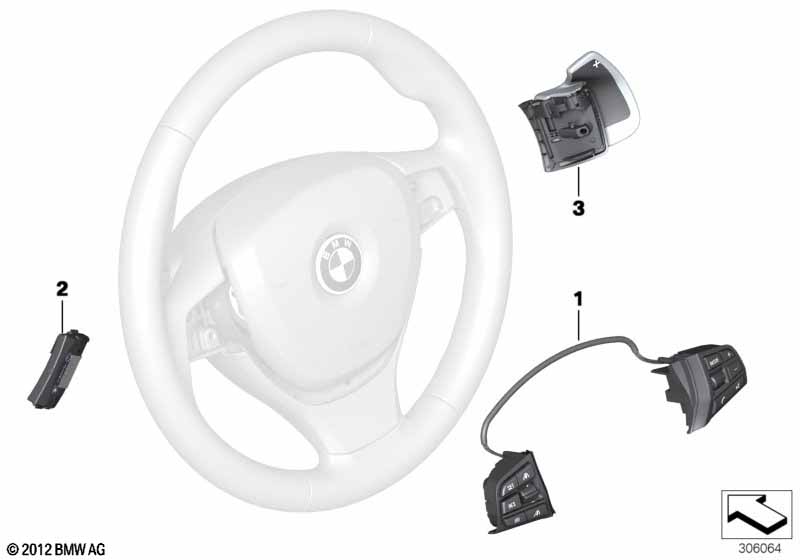

This Steering wheel electronic control technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S255A=No S5DFA=Yes S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319262707 | Shop at ECS Tuning | |||||
| The symbol for 'system on/off' on the cruise-control switch may vary from that found on the originally-installed switch. |
||||||||||
| For vehicles with Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S255A=No S5DFA=No S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319262706 | Shop at ECS Tuning | |||||
| The symbol for 'system on/off' on the cruise-control switch may vary from that found on the originally-installed switch. |
||||||||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=No S5DFA=Yes S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229481 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=Yes S5DFA=No S710A=Yes |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229484 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=Yes S5DFA=No S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229484 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=No S5DFA=No S710A=Yes |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229484 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=Yes S5DFA=Yes S710A=Yes |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229485 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=Yes S5DFA=Yes S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229485 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=No S5DFA=Yes S710A=Yes |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229485 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=No S255A=Yes S5DFA=No S710A=Yes |
|||||||||
| 01 | Switch, MF steering wheel, Sport | 1 | 09/2011 | 61319262708 | Shop at ECS Tuning | |||||
| The symbol for 'system on/off' on the cruise-control switch may vary from that found on the originally-installed switch. |
||||||||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=No S255A=Yes S5DFA=No S710A=No |
|||||||||
| 01 | Switch, MF steering wheel, Sport | 1 | 09/2011 | 61319262708 | Shop at ECS Tuning | |||||
| The symbol for 'system on/off' on the cruise-control switch may vary from that found on the originally-installed switch. |
||||||||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=No S255A=No S5DFA=No S710A=Yes |
|||||||||
| 01 | Switch, MF steering wheel, Sport | 1 | 09/2011 | 61319262708 | Shop at ECS Tuning | |||||
| The symbol for 'system on/off' on the cruise-control switch may vary from that found on the originally-installed switch. |
||||||||||
| For vehicles with Extra package, EU-specific and Sports leather steering wheel and Active cruise control+Stop&Go function and M leather steering wheel |
S230A=Yes S255A=No S5DFA=No S710A=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 09/2011 | 61319229480 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 02 | Control unit, steering wheel electronics | 1 | 61319218381 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Lane departure warning and Lane-change warning |
S248A=Yes S5ADA=Yes S5AGA=Yes |
|||||||||
| 02 | Control unit, steering wheel electronics | 1 | 61317468008 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Lane departure warning and Lane-change warning |
S248A=Yes S5ADA=Yes S5AGA=No |
|||||||||
| 02 | Control unit, steering wheel electronics | 1 | 61317468008 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Lane departure warning and Lane-change warning |
S248A=Yes S5ADA=No S5AGA=Yes |
|||||||||
| 02 | Control unit, steering wheel electronics | 1 | 61317468008 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Lane departure warning and Lane-change warning |
S248A=Yes S5ADA=No S5AGA=No |
|||||||||
| 02 | Control unit, steering wheel electronics | 1 | 61317468009 | Shop at ECS Tuning | ||||||
| 03 | Rocker-type shift lever, left | 1 | 07/2013 | 61319218399 | Shop at ECS Tuning | |||||
| 03 | Rocker-type shift lever, right | 1 | 07/2013 | 61319218400 | Shop at ECS Tuning | |||||
