Circular connector / D 2,5 mm System for BMW 5 Series F10 LCI 530dX (2016)

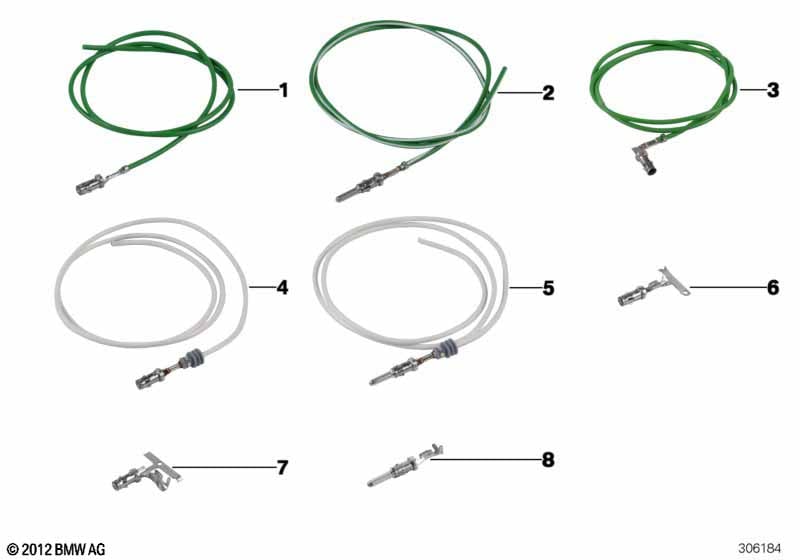

This Circular connector / D 2,5 mm System technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap-in receptacle 2.5 with cable | 1,5-2,5 MM² AG | X | 61132466429 | Shop at ECS Tuning | |||||
| 01 | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | X | 61135A07B73 | Shop at ECS Tuning | |||||
| 02 | Circular contact 2.5 with cable | 0,5-1,0 MM² | X | 61130007452 | $2.07 | Shop at ECS Tuning | ||||
| 02 | Circular contact 2.5 with cable | 1,0-2,5MM² AG | X | 61130070577 | Shop at ECS Tuning | |||||
| 03 | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² | X | 61130007470 | $2.27 | Shop at ECS Tuning | ||||
| 03 | Snap-in receptacle 2.5 with cable | 1,0-2,5 MM² | X | 61130007472 | $2.55 | Shop at ECS Tuning | ||||
| 04 | Snap-in receptacle 2.5 ELA with cable | 0,75-1,0 MM² | X | 61130007569 | $2.27 | Shop at ECS Tuning | ||||
| 04 | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| 05 | Circular contact 2.5 ELA with cable | 0,75-1,0 MM² | X | 61130007570 | $2.32 | Shop at ECS Tuning | ||||
| 05 | Circular contact 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007572 | $2.65 | Shop at ECS Tuning | ||||
| 06 | Snap-in receptacle 2.5 | 0,5-1,0MM² | X | 11/2024 | 61131376202 | $0.98 | Shop at ECS Tuning | |||
| 06 | Snap-in receptacle 2.5 | 0,5-1,0MM² | X | 61135A7DDF3 | Shop at ECS Tuning | |||||
| 06 | Snap-in receptacle 2.5 | 1,0-2,5MM² | X | 11/2024 | 61131376204 | $0.98 | Shop at ECS Tuning | |||
| 06 | Snap-in receptacle 2.5 | 1,0-2,5MM² | X | 61135A7DDF4 | Shop at ECS Tuning | |||||
| 06 | Snap-in receptacle 2.5 | 2,5-4,0MM² | X | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
| 06 | Snap-in receptacle 2.5 ELA with cable | 2,5-4,0 MM² AG | X | 61132471442 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 4.0MM² | X | 61138352924 | $0.28 | Shop at ECS Tuning | ||||
| 07 | Snap-in receptacle 2.5 | 1,5-2,5MM² | X | 61131376224 | $0.50 | Shop at ECS Tuning | ||||
| 08 | Circular contact 2.5 | 2,5-4,0MM² | X | 03/2019 | 61131376195 | $1.05 | ENDED | Shop at ECS Tuning | ||
| 08 | Circular contact 2.5 | 2,5-4,0MM² AG | X | 12/2022 | 61139344421 | Shop at ECS Tuning | ||||
| 08 | Circular contact pin 2.5 | 2,5-4,0MM² AG | X | 61135A7DDD9 | Shop at ECS Tuning | |||||
| 08 | Circular contact 2.5 | 0,5-1,0MM² | X | 12/2022 | 61131376191 | $0.55 | Shop at ECS Tuning | |||
| 08 | Circular contact pin 2.5 | 0,5-1,0MM² | X | 61135A7DDD3 | Shop at ECS Tuning | |||||
| 08 | Circular contact 2.5 | 1,0-2,5MM² | X | 12/2022 | 61131376193 | $1.12 | Shop at ECS Tuning | |||
| 08 | Circular contact pin 2.5 | 1,0-2,5MM² | X | 61135A7DDE0 | Shop at ECS Tuning | |||||
| 08 | Circular contact 2.5 | 0,22-0,35MM² SN | X | 12/2022 | 61131390409 | ENDED | Shop at ECS Tuning | |||
| 08 | Circular contact pin 2.5 | 0,22-0,35MM² SN | X | 61135A7DDD5 | Shop at ECS Tuning | |||||
| 08 | Circular contact 2.5 | 0,22-0,35MM² AG | X | 61131390429 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
