Switch window lifter for BMW 5 Series E39 528i (2000)

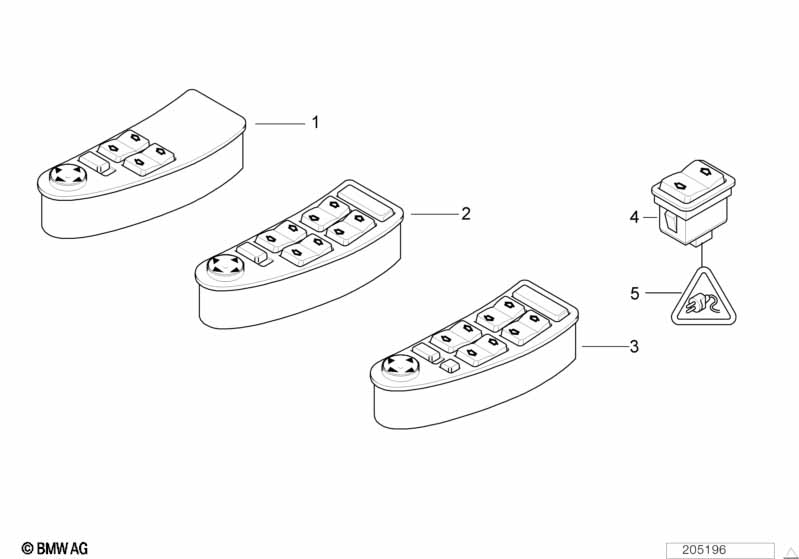

This Switch window lifter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Not suitable for retraction mechanism | ||||||||||
| 02 | Switch unit, driver's door | 1 | 61319362774 | Shop at ECS Tuning | ||||||
| Only apllies to power folding assembly | ||||||||||
| 03 | Switch unit, driver's door | 1 | 61319362776 | Shop at ECS Tuning | ||||||
| 04 | Switch window lifter | 3 | 09/1996 | 61318368974 | $33.68 | Shop at ECS Tuning | ||||
| 05 | Rep. kit for socket housing | 4 POL. | X | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Switch window lifter?
- This technical diagram illustrates the Switch window lifter within the Vehicle electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Switch unit, driver's door (Part #61319362774).
- Which models use the hardware listed in this Switch window lifter?
- The hardware and components featured in the Switch window lifter are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Switch unit, driver's door (61319362774) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch window lifter assembly?
- Each item in the Switch window lifter corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Switch unit, driver's door by locating its position on the schematic, which then links to the official BMW part number 61319362774 for the Vehicle electrical system section.
