Cigarette lighter / sockets for BMW MINI F56 One (2021)

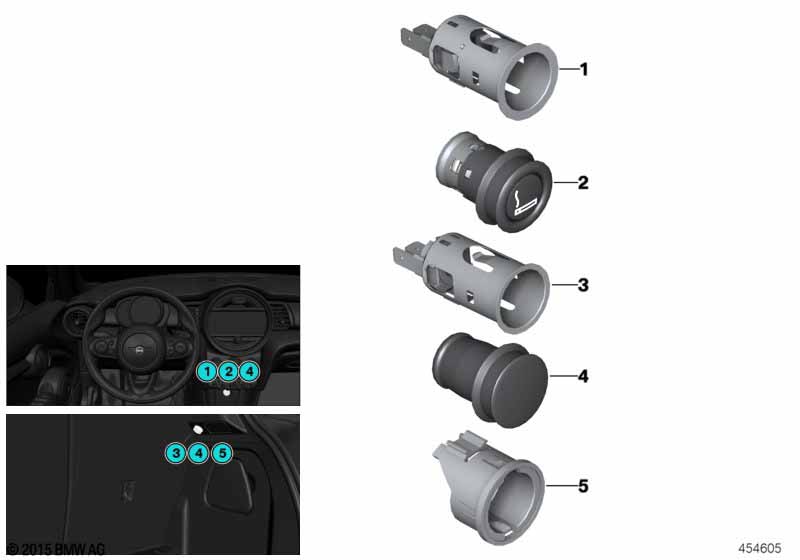

This Cigarette lighter / sockets technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Socket for cigarette lighter | 1 | 61349302183 | Shop at ECS Tuning | ||||||
| 02 | Lighter element | 1 | 61349308246 | Shop at ECS Tuning | ||||||
| 03 | Plug-in socket | 1 | 61346973037 | $3.78 | Shop at ECS Tuning | |||||
| 04 | Stopper plug-in socket | 2 | 61349316116 | Shop at ECS Tuning | ||||||
| 05 | Luminous ring, orange | 1 | 51167052720 | $3.73 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 One Cigarette lighter / sockets?
- This technical diagram illustrates the Cigarette lighter / sockets within the Vehicle electrical system group for the MINI F56 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Socket for cigarette lighter (Part #61349302183).
- Which models use the hardware listed in this Cigarette lighter / sockets?
- The hardware and components featured in the Cigarette lighter / sockets are specific to the MINI F56 One produced during 2021. These technical specifications ensure that parts like the Socket for cigarette lighter (61349302183) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cigarette lighter / sockets assembly?
- Each item in the Cigarette lighter / sockets corresponds to the numbered list below the illustration. For the MINI F56 One, you can identify the Socket for cigarette lighter by locating its position on the schematic, which then links to the official BMW part number 61349302183 for the Vehicle electrical system section.
