Relay for DDE 4.0 K2003 for BMW 3 Series E46 330d (2003)

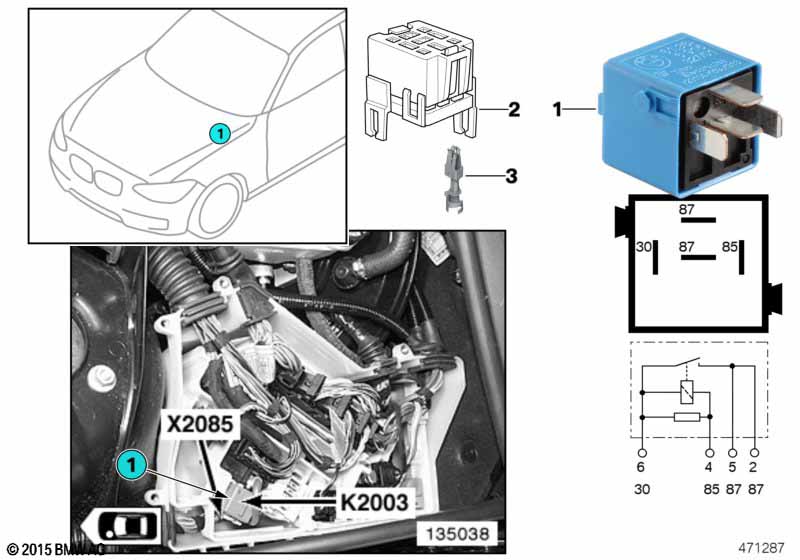

This Relay for DDE 4.0 K2003 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay, make contact, sky-blue | 1 | 61366915327 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Double flat spring contact with cable | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM?(SN) | X | 61138377731 | $0.55 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Relay for DDE 4.0 K2003?
- This technical diagram illustrates the Relay for DDE 4.0 K2003 within the Vehicle electrical system group for the 3 Series E46 330d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, sky-blue (Part #61366915327).
- Which models use the hardware listed in this Relay for DDE 4.0 K2003?
- The hardware and components featured in the Relay for DDE 4.0 K2003 are specific to the 3 Series E46 330d produced during 2003. These technical specifications ensure that parts like the Relay, make contact, sky-blue (61366915327) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for DDE 4.0 K2003 assembly?
- Each item in the Relay for DDE 4.0 K2003 corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Relay, make contact, sky-blue by locating its position on the schematic, which then links to the official BMW part number 61366915327 for the Vehicle electrical system section.
