Windshield cleaning container for BMW MINI Cabrio F57 One (2021)

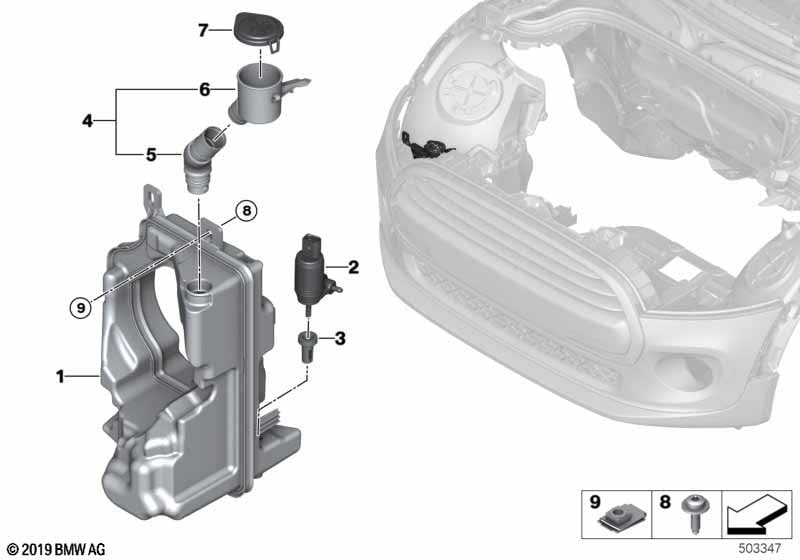

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer fluid reservoir | 1 | 61669478908 | Shop at ECS Tuning | ||||||
| 02 | Wash pump/fluid container | 1 | 67637345887 | Shop at ECS Tuning | ||||||
| 03 | Strainer f wash pump | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 05 | Bottom filler pipe | 1 | 61667443278 | Shop at ECS Tuning | ||||||
| 06 | Upper filler pipe | 1 | 61667414868 | Shop at ECS Tuning | ||||||
| 07 | Cover f filler pipe | 1 | 61667375587 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | 2 | 07147576706 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 One Windshield cleaning container?
- This technical diagram illustrates the Windshield cleaning container within the Vehicle electrical system group for the MINI Cabrio F57 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Washer fluid reservoir (Part #61669478908).
- Which models use the hardware listed in this Windshield cleaning container?
- The hardware and components featured in the Windshield cleaning container are specific to the MINI Cabrio F57 One produced during 2021. These technical specifications ensure that parts like the Washer fluid reservoir (61669478908) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield cleaning container assembly?
- Each item in the Windshield cleaning container corresponds to the numbered list below the illustration. For the MINI Cabrio F57 One, you can identify the Washer fluid reservoir by locating its position on the schematic, which then links to the official BMW part number 61669478908 for the Vehicle electrical system section.
