Relay for electric fan motor, K5 for BMW MINI F56 JCW (2021)

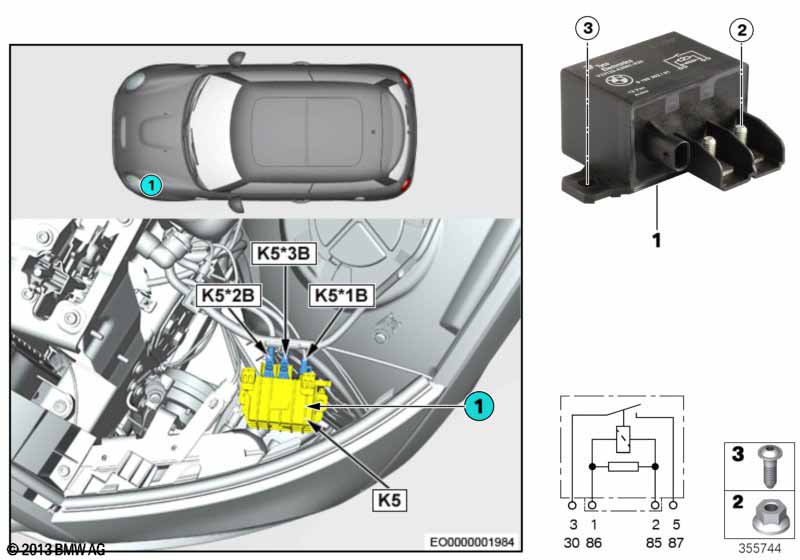

This Relay for electric fan motor, K5 technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay | 130A | 1 | 03/2016 | 61366822250 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Guard cap, relay, engine electric fan | 1 | 03/2016 | 61139326000 | Shop at ECS Tuning | |||||
| 02 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Relay for electric fan motor, K5?
- This technical diagram illustrates the Relay for electric fan motor, K5 within the Vehicle electrical system group for the MINI F56 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61366822250).
- Which models use the hardware listed in this Relay for electric fan motor, K5?
- The hardware and components featured in the Relay for electric fan motor, K5 are specific to the MINI F56 JCW produced during 2021. These technical specifications ensure that parts like the Relay (61366822250) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for electric fan motor, K5 assembly?
- Each item in the Relay for electric fan motor, K5 corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61366822250 for the Vehicle electrical system section.
