Load-shedding relay, ign./inj. K6341 for BMW 1 Series E82 135i (2013)

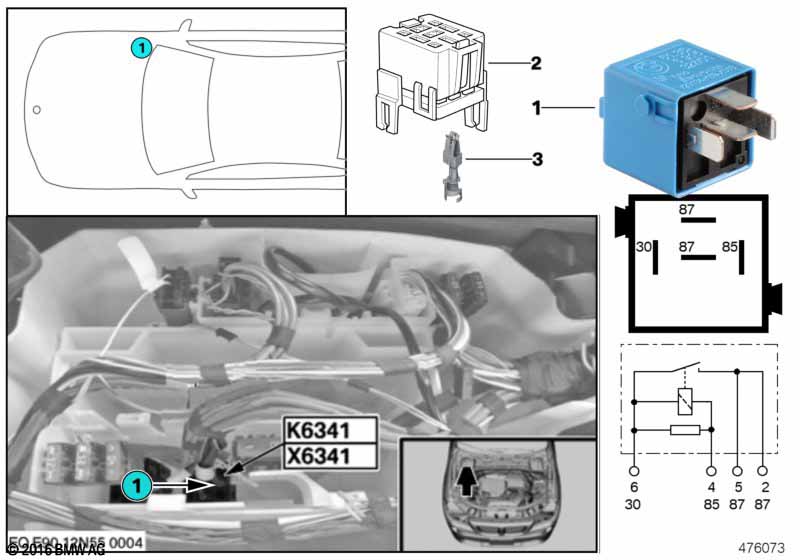

This Load-shedding relay, ign./inj. K6341 technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, make contact, sky-blue | 1 | 61366915327 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | 1 | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | 1 | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | 1 | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 135i Load-shedding relay, ign./inj. K6341?
- This technical diagram illustrates the Load-shedding relay, ign./inj. K6341 within the Vehicle electrical system group for the 1 Series E82 135i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, sky-blue (Part #61366915327).
- Which models use the hardware listed in this Load-shedding relay, ign./inj. K6341?
- The hardware and components featured in the Load-shedding relay, ign./inj. K6341 are specific to the 1 Series E82 135i produced during 2013. These technical specifications ensure that parts like the Relay, make contact, sky-blue (61366915327) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Load-shedding relay, ign./inj. K6341 assembly?
- Each item in the Load-shedding relay, ign./inj. K6341 corresponds to the numbered list below the illustration. For the 1 Series E82 135i, you can identify the Relay, make contact, sky-blue by locating its position on the schematic, which then links to the official BMW part number 61366915327 for the Vehicle electrical system section.
