Relay, compressor for air suspension K1 for BMW 7 Series F02 LCI 740Li (2015)

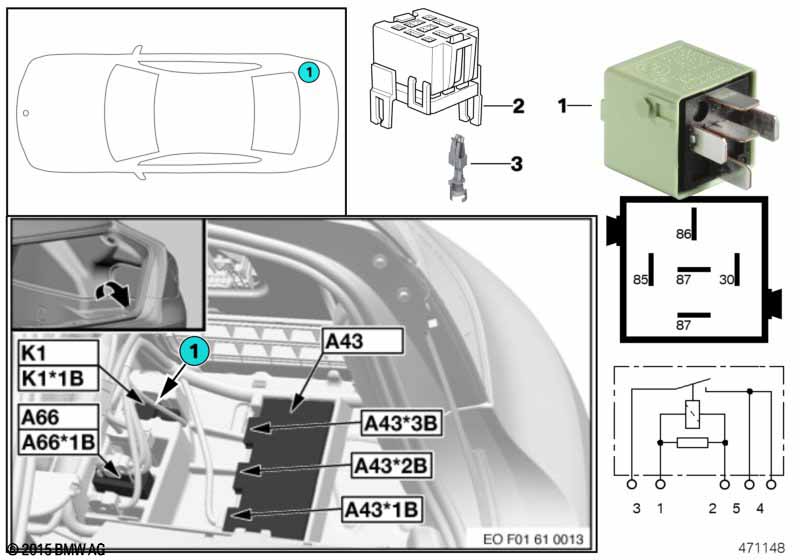

This Relay, compressor for air suspension K1 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Relay, compressor for air suspension K1?
- This technical diagram illustrates the Relay, compressor for air suspension K1 within the Vehicle electrical system group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, white green (Part #61368373700).
- Which models use the hardware listed in this Relay, compressor for air suspension K1?
- The hardware and components featured in the Relay, compressor for air suspension K1 are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Relay, make contact, white green (61368373700) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay, compressor for air suspension K1 assembly?
- Each item in the Relay, compressor for air suspension K1 corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Relay, make contact, white green by locating its position on the schematic, which then links to the official BMW part number 61368373700 for the Vehicle electrical system section.
