Windshield cleaning container for BMW 2 Series F46 Gran Tourer 218d (2018)

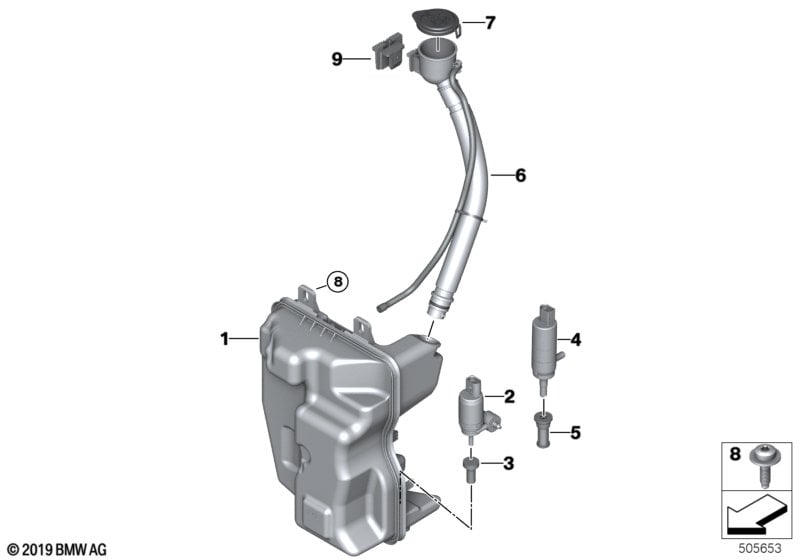

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlight cleaning system |
S502A=No |
|||||||||
| 01 | Washer fluid reservoir | 1 | 61667403904 | Shop at ECS Tuning | ||||||
| 02 | Double wash pump | 1 | 67127388349 | Shop at ECS Tuning | ||||||
| 03 | Strainer f wash pump | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Filler pipe for wash container | 1 | 61667301629 | Shop at ECS Tuning | ||||||
| 07 | Cover f filler pipe | 1 | 61667375587 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
