Relay for convertible top 2 K18364 for BMW 1 Series E88 135i (2013)

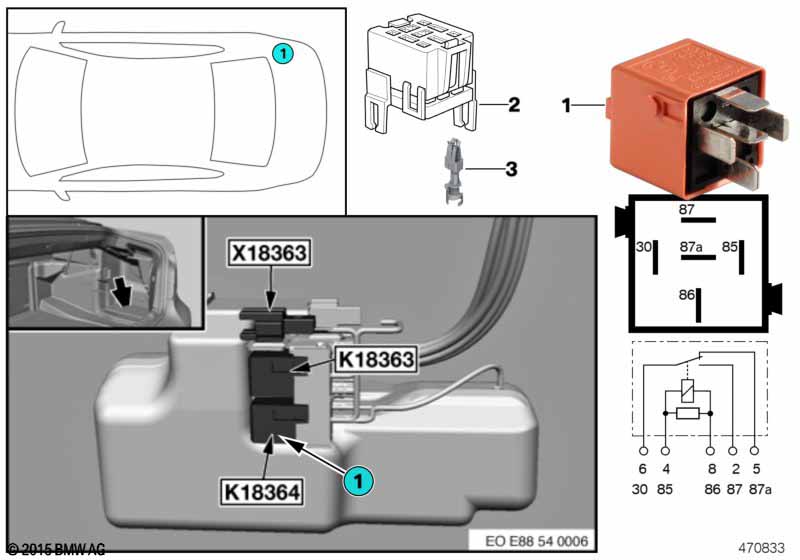

This Relay for convertible top 2 K18364 technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay changer salmon red | 1 | 12631742690 | $8.32 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Relay for convertible top 2 K18364?
- This technical diagram illustrates the Relay for convertible top 2 K18364 within the Vehicle electrical system group for the 1 Series E88 135i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Relay changer salmon red (Part #12631742690).
- Which models use the hardware listed in this Relay for convertible top 2 K18364?
- The hardware and components featured in the Relay for convertible top 2 K18364 are specific to the 1 Series E88 135i produced during 2013. These technical specifications ensure that parts like the Relay changer salmon red (12631742690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for convertible top 2 K18364 assembly?
- Each item in the Relay for convertible top 2 K18364 corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Relay changer salmon red by locating its position on the schematic, which then links to the official BMW part number 12631742690 for the Vehicle electrical system section.
