Relay for electric fan K9137 for BMW 3 Series E92 M3 (2010)

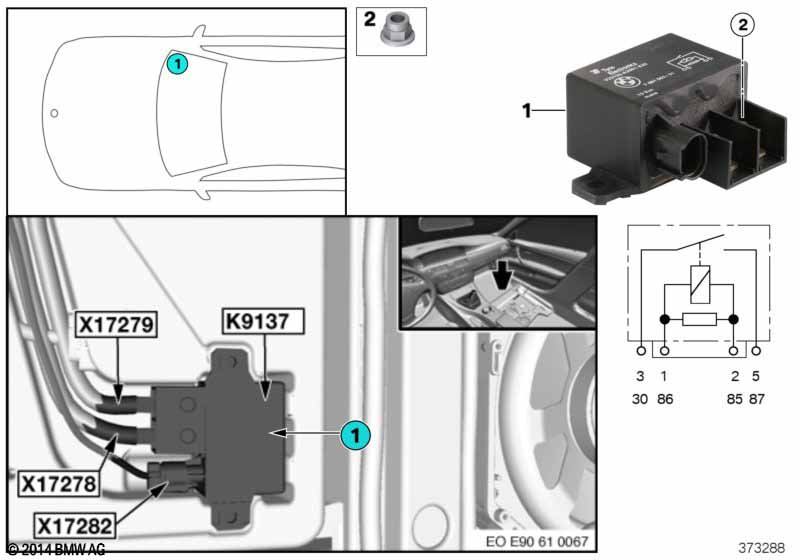

This Relay for electric fan K9137 technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay | 150A | 1 | 61367661503 | $73.85 | +core | Shop at ECS Tuning | |||
| 02 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 M3 Relay for electric fan K9137?
- This technical diagram illustrates the Relay for electric fan K9137 within the Vehicle electrical system group for the 3 Series E92 M3 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61367661503).
- Which models use the hardware listed in this Relay for electric fan K9137?
- The hardware and components featured in the Relay for electric fan K9137 are specific to the 3 Series E92 M3 produced during 2010. These technical specifications ensure that parts like the Relay (61367661503) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for electric fan K9137 assembly?
- Each item in the Relay for electric fan K9137 corresponds to the numbered list below the illustration. For the 3 Series E92 M3, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61367661503 for the Vehicle electrical system section.
