Relay for convertible top 1 K18363 for BMW Z8 E52 Z8 (2003)

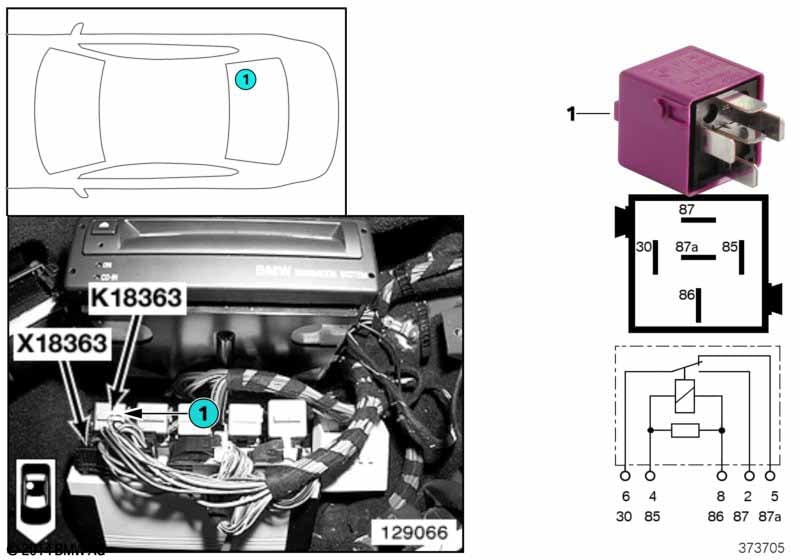

This Relay for convertible top 1 K18363 technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW Z8 E52 Z8 Relay for convertible top 1 K18363?
- This technical diagram illustrates the Relay for convertible top 1 K18363 within the Vehicle electrical system group for the Z8 E52 Z8 produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Relay, change-over contact,signal violet (Part #61361388911).
- Which models use the hardware listed in this Relay for convertible top 1 K18363?
- The hardware and components featured in the Relay for convertible top 1 K18363 are specific to the Z8 E52 Z8 produced during 2003. These technical specifications ensure that parts like the Relay, change-over contact,signal violet (61361388911) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for convertible top 1 K18363 assembly?
- Each item in the Relay for convertible top 1 K18363 corresponds to the numbered list below the illustration. For the Z8 E52 Z8, you can identify the Relay, change-over contact,signal violet by locating its position on the schematic, which then links to the official BMW part number 61361388911 for the Vehicle electrical system section.
