Secondary air injection pump relay K6304 for BMW 5 Series E39 523i (2000)

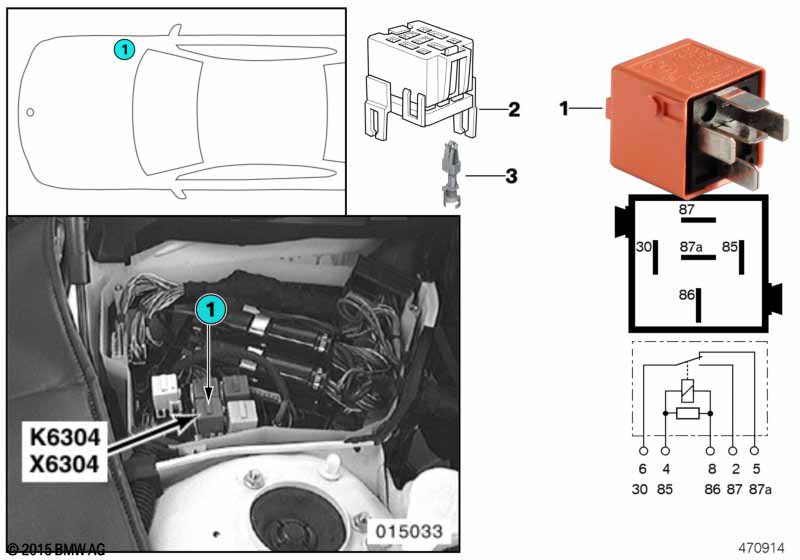

This Secondary air injection pump relay K6304 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay changer salmon red | 1 | 09/1996 | 12631742690 | $8.32 | Shop at ECS Tuning | ||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 1,5-2,5 MM?(SN) | X | 04/2002 | 61138377731 | $0.55 | Shop at ECS Tuning | |||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
