Relay, secondary air pump, K6304a for BMW 5 Series E60 523Li (2023)

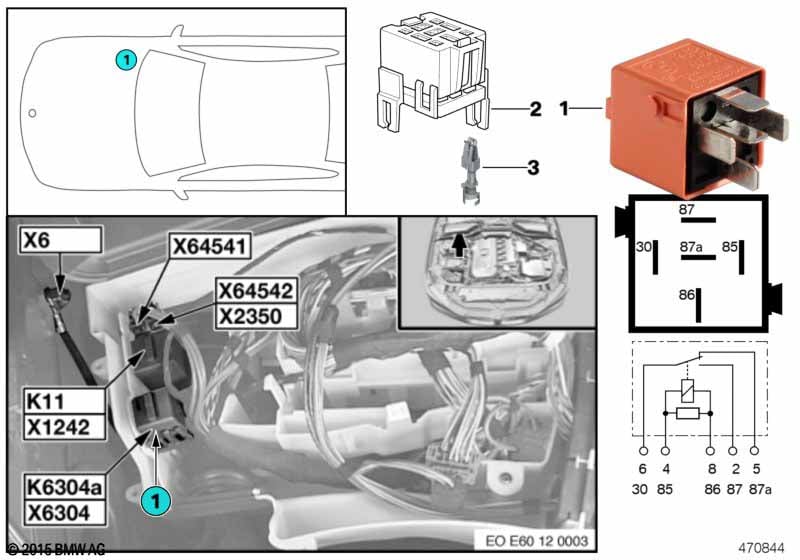

This Relay, secondary air pump, K6304a technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay changer salmon red | 1 | 12631742690 | $8.32 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 523Li Relay, secondary air pump, K6304a?
- This technical diagram illustrates the Relay, secondary air pump, K6304a within the Vehicle electrical system group for the 5 Series E60 523Li produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Relay changer salmon red (Part #12631742690).
- Which models use the hardware listed in this Relay, secondary air pump, K6304a?
- The hardware and components featured in the Relay, secondary air pump, K6304a are specific to the 5 Series E60 523Li produced during 2023. These technical specifications ensure that parts like the Relay changer salmon red (12631742690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay, secondary air pump, K6304a assembly?
- Each item in the Relay, secondary air pump, K6304a corresponds to the numbered list below the illustration. For the 5 Series E60 523Li, you can identify the Relay changer salmon red by locating its position on the schematic, which then links to the official BMW part number 12631742690 for the Vehicle electrical system section.
