Switch for emergency flasher system for BMW 2 Series F46 Gran Tourer 218i (2018)

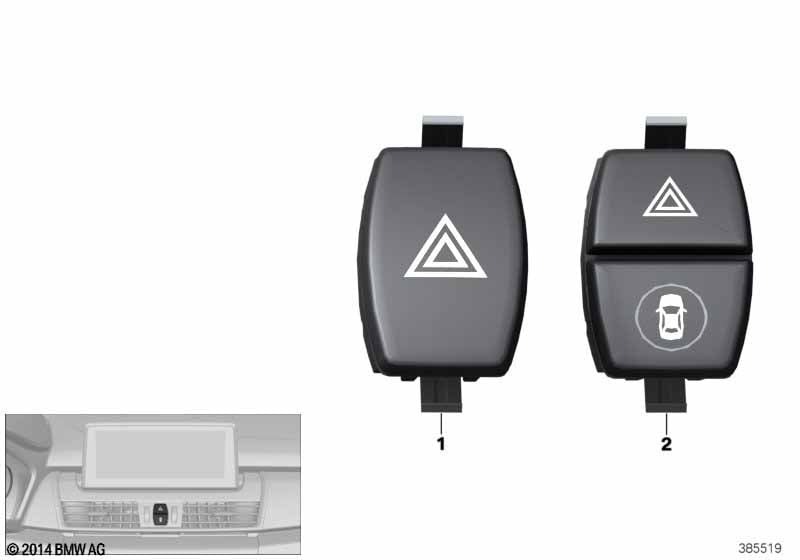

This Switch for emergency flasher system technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=No S5ATA=No S5AVA=No |
|||||||||
| 01 | Switch for emergency flasher system | 1 | 61319389075 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=Yes S5ATA=Yes S5AVA=Yes |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=Yes S5ATA=Yes S5AVA=No |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=Yes S5ATA=No S5AVA=Yes |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=Yes S5ATA=No S5AVA=No |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=No S5ATA=Yes S5AVA=Yes |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=No S5ATA=Yes S5AVA=No |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Active Guard |
S5ASA=No S5ATA=No S5AVA=Yes |
|||||||||
| 02 | Switch for emergency flasher system | 1 | 61319423268 | Shop at ECS Tuning | ||||||
