Control unit, BDC Body Domain Controller for BMW 2 Series F46 Gran Tourer LCI 216d (2018)

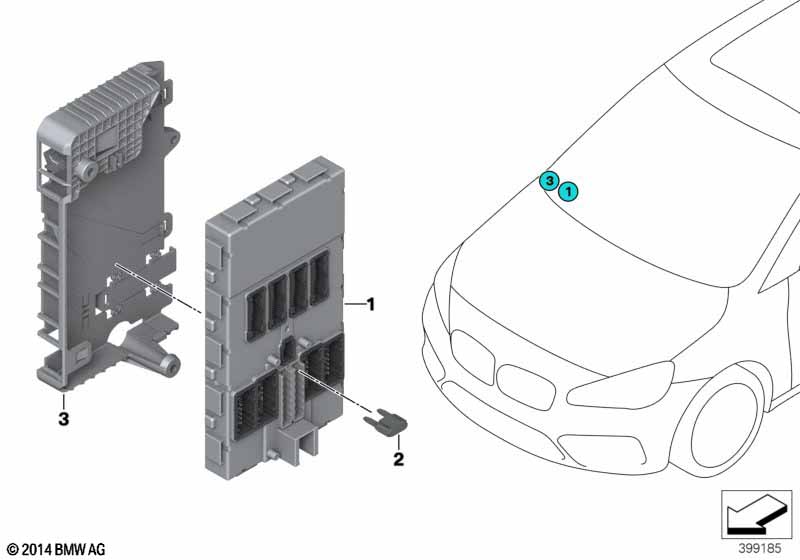

This Control unit, BDC Body Domain Controller technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body Domain Controller BDC | 1 | 12/2021 | 61355A402E6 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body Domain Controller BDC | 1 | 03/2023 | 61355A5E689 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body Domain Controller BDC | 1 | 04/2023 | 61355A91FD5 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body Domain Controller BDC | 1 | 61355B5D695 | Shop at ECS Tuning | ||||||
| 02 | Fuse Mini, yellow-brown | 5A | X | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Fuse Mini, brown | 7,5A | X | 61136917402 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Fuse Mini, blue | 15A | X | 61136917404 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Fuse Mini, yellow | 20A | X | 61136942071 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Fuse, Mini, green | 30A | X | 61139230533 | Shop at ECS Tuning | |||||
| 03 | Bracket BDC | 1 | 61359306899 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 216d Control unit, BDC Body Domain Controller?
- This technical diagram illustrates the Control unit, BDC Body Domain Controller within the Vehicle electrical system group for the 2 Series F46 Gran Tourer LCI 216d produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Body Domain Controller BDC (Part #61355A402E6).
- Which models use the hardware listed in this Control unit, BDC Body Domain Controller?
- The hardware and components featured in the Control unit, BDC Body Domain Controller are specific to the 2 Series F46 Gran Tourer LCI 216d produced during 2018. These technical specifications ensure that parts like the Body Domain Controller BDC (61355A402E6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit, BDC Body Domain Controller assembly?
- Each item in the Control unit, BDC Body Domain Controller corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 216d, you can identify the Body Domain Controller BDC by locating its position on the schematic, which then links to the official BMW part number 61355A402E6 for the Vehicle electrical system section.
