Relay for rear wiper K91 for BMW 5 Series E61 525i (2007)

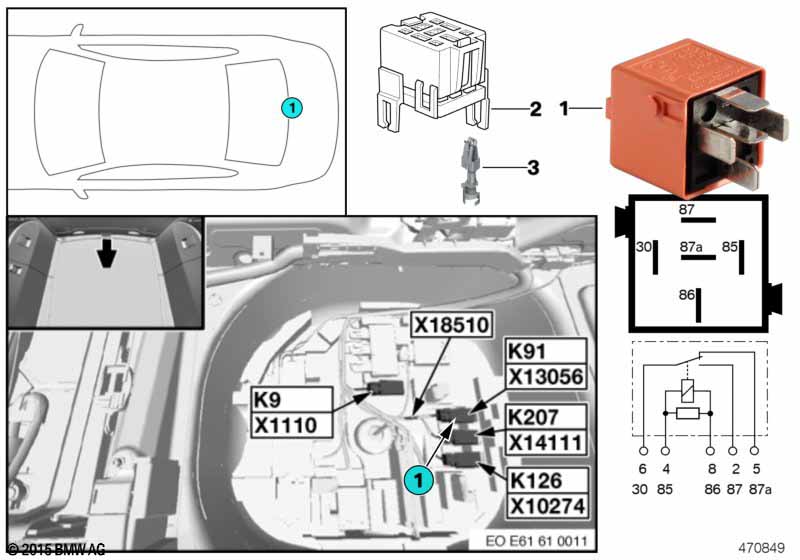

This Relay for rear wiper K91 technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay changer salmon red | 1 | 12631742690 | $8.32 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525i Relay for rear wiper K91?
- This technical diagram illustrates the Relay for rear wiper K91 within the Vehicle electrical system group for the 5 Series E61 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Relay changer salmon red (Part #12631742690).
- Which models use the hardware listed in this Relay for rear wiper K91?
- The hardware and components featured in the Relay for rear wiper K91 are specific to the 5 Series E61 525i produced during 2007. These technical specifications ensure that parts like the Relay changer salmon red (12631742690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for rear wiper K91 assembly?
- Each item in the Relay for rear wiper K91 corresponds to the numbered list below the illustration. For the 5 Series E61 525i, you can identify the Relay changer salmon red by locating its position on the schematic, which then links to the official BMW part number 12631742690 for the Vehicle electrical system section.
